Leer Freezer Transports
The same Leer Merchandiser quality.
Just on the go.
Model 5×10 – Multi-Temp
- AD
- R404a
Dimensions (W x D x H)1-2:
60 x 120 x 88
Additional Information
Model 5×10 – Multi-Temp
Standard Model Numbers
Auto Defrost – R404a:
5x10 AD
Dimensions & Capacities
7 lb. Bags - Auto Defrost:
520
20 lb. Bags - Auto Defrost:
200
Approx. Interior Cubic Feet:
285
Exterior Dimensions (W” x D” x H”):
60 x 120 x 88
Interior Dimensions (W” x D” x H”):
54 x 114 x 80.75
Door Opening Dimensions (W” x H”):
50.50 x 78.50
Operating Temperature
(X°F - X°F):
-4 to +40
Control:
Electronic
Product Weight
Auto Defrost (lbs.):
1370
Electrical
Voltage (V/Hz):
120/60
Min. Circuit Required (Amps):
20
Trailer
Trailer:
Upon Request
Other
Compressor (HP):
1.25
Compressor Type:
Scroll Compressor
Auto Defrost Fan Type:
ECM Fans
Refrigerant:
Certifications:
NSF (Pending), UL (Pending), Prop 65 Compliant
- Depth Does Not Include Compressor
- Add 3.5″ to Depth for Handle & Hinges
- Transport storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.
Model 5×10 – Multi-Temp w/ Trailer
- AD
- R404a
Dimensions (W x D x H)1-2:
60 x 120 x 88 (Transport Only)
Additional Information
Model 5×10 – Multi-Temp w/ Trailer
Standard Model Numbers
Auto Defrost – R404a:
5x10T AD
Dimensions & Capacities
7 lb. Bags - Auto Defrost:
520
20 lb. Bags - Auto Defrost:
200
Approx. Interior Cubic Feet:
285
Exterior Dimensions (W” x D” x H”):
60 x 120 x 88 (Transport Only)
Interior Dimensions (W” x D” x H”):
54 x 114 x 80.75
Door Opening Dimensions (W” x H”):
50.50 x 78.50
Dimensions w/ Trailer (W” x D” x H”):
86 x 184 x 105.75
Operating Temperature
(X°F - X°F):
-4 to +40
Control:
Electronic
Product Weight
Auto Defrost (lbs.):
2740 (with Trailer)
Electrical
Voltage (V/Hz):
120/60
Min. Circuit Required (Amps):
20
Trailer
Trailer:
Yes
GVWR (lbs.):
9,900
Axles (lbs.):
5,200 (Dual)
Payload (lbs.):
7,000
Other
Compressor (HP):
1.25
Compressor Type:
Scroll Compressor
Auto Defrost Fan Type:
ECM Fans
Refrigerant:
Certifications:
NSF (Pending), UL (Pending), Prop 65 Compliant
- Depth Does Not Include Compressor
- Add 3.5″ to Depth for Handle & Hinges
- Transport storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.

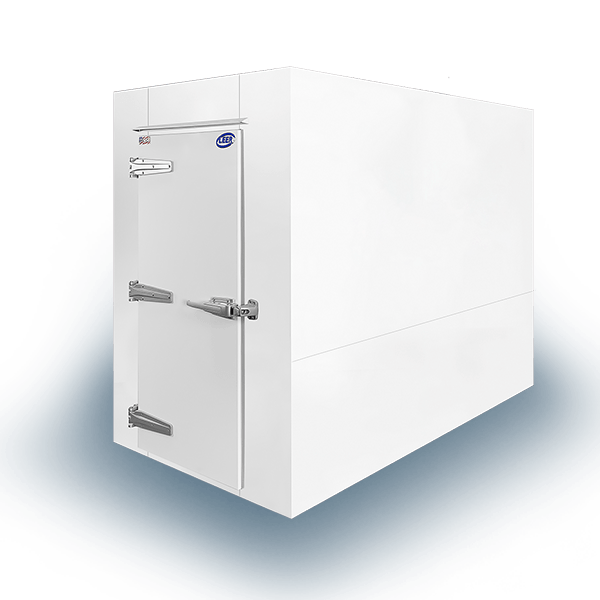

Model 4 x 8
- AD
- CW
- R404a
Dimensions (W x D x H)1-2:
48 x 96 x 71
Additional Information
Model 4 x 8
Standard Model Numbers
Auto Defrost – R404a:
4X8 ADF
Cold Wall – R404a:
N/A
Dimensions & Capacities
Approx. Interior Cubic Feet:
140
Dimensions (W” x D” x H”):
48 x 96 x 71
Door Size (W” x H”):
25 x 57
Operating Temperature
(X°F - X°F):
-4 - 0
Control:
Mechanical Control
Product Weight
Auto Defrost (lbs.):
1150
Cold Wall (lbs.):
N/A
Electrical
Voltage (V/Hz):
115 / 60
Min. Circuit Required (Amps):
20
Auto Defrost (Amps):
11.6
Cold Wall (Amps):
N/A
230V/50Hz Available: Upon Request
Other
Compressor (HP):
3/4
Refrigerant:
- Depth Does Not Include Compressor
- Add 3.5″ to Depth for Handle & Hinges
Model 5 x 9
- CW
- R404a
Dimensions (W x D x H)1-2:
56 x 108 x 83
Additional Information
Model 5 x 9
Standard Model Numbers
Auto Defrost – R404a:
5X9 ADF
Cold Wall – R404a:
N/A
Dimensions & Capacities
Approx. Interior Cubic Feet:
220
Dimensions (W” x D” x H”):
56 x 108 x 83
Door Size (W” x H”):
45 x 74
Operating Temperature
(X°F - X°F):
-4 - 0
Control:
Mechanical Control
Product Weight
Auto Defrost (lbs.):
1615
Cold Wall (lbs.):
N/A
Electrical
Voltage (V/Hz):
115 / 60
Min. Circuit Required (Amps):
20
Auto Defrost (Amps):
11.6
Cold Wall (Amps):
N/A
230V/50Hz Available: Upon Request
Other
Compressor (HP):
3/4
Refrigerant:
- Depth Does Not Include Compressor
- Add 3.5″ to Depth for Handle & Hinges
Looking for a different temperature?
4x8 Construction Features
Click on a number to learn more about each product feature.
Leer Inc.
- Your Partner in Temperature-Controlled Storage Solutions
- With over 65 years of industry expertise, innovation and focus on manufacturing excellence, we're confident our products feature industry leading efficiency, reliability, durability and longevity - delivering an unbeatable value to you and your company.
- Made in Wisconsin, USA
- Manufactured under a strict quality control program to ensure our products are delivered right the first time, right every time.
- We're With You Every Degree of the Way
- As an employee owned company, our success depends on your success. We stand behind our products and are dedicated to your success by providing free lifetime technical support. Our engineers and customer service teams are available to help, whether you're a potential new customer or a lifetime customer of Leer.
Construction Features
- High R-Values
- Increased insulation to reduce heat infiltration into the unit - resulting in consistent and optimal temperatures. There’s 3" of high-performance, eco-friendly, insulation in the ceiling, walls, and floor.
- Rust Resistant
- The exterior of the transport is finished with a two-part primer/top coat all-weather paint to provide superior resistance to humidity, corrosion, and other weather conditions.
- Reinforced Steel Frames
- Steel frames ensure stability and protect from the vibration while traveling down the road.
- Mounting Locations
- Mounting locations available should the unit be attached to a trailer.
- Compressor Cover & Reinforced Mounting Bracket
- Compressor cover provides air flow for better cooling of the condenser and compressor. It's also a layer of protection from harmful foreign objects. The mounting bracket is reinforced to protect from vibration while traveling down the road.
Door Features
- Stainless Steel/Chrome-Finish Hardware
- All hardware, including hinges and handles, are powder coated, stainless steel or have a chrome-finish to provide greater strength durability, resistance to corrosion, and high-end look.
- Balloon Gaskets
- The gaskets provide a tight insulation around the doors to prevent hot air entering the unit. Therefore, making the transport more energy efficient and better at keeping your product in premium condition.
- Emergency Release Handle
- The inside contains an emergency release handle for additional safety.
Refrigeration Features
- Limited Maintenance
- Automatic Defrost refrigeration system to prevent frost build up.
- Various Temperatures
- Three different temperature ranges are available for optimal storage and transportation of Ice, Cooler or Frozen goods.
Interior Features
- High-End Interior Finish
- Stucco-embossed galvanized steel interior finish.
- Interior Lighting
- Standard with energy efficient LED lighting.
5x9 Construction Features
Click on a number to learn more about each product feature.
Leer Inc.
- Your Partner in Temperature-Controlled Storage Solutions
- With over 65 years of industry expertise, innovation and focus on manufacturing excellence, we're confident our products feature industry leading efficiency, reliability, durability and longevity - delivering an unbeatable value to you and your company.
- Made in Wisconsin, USA
- Manufactured under a strict quality control program to ensure our products are delivered right the first time, right every time.
- We're With You Every Degree of the Way
- As an employee owned company, our success depends on your success. We stand behind our products and are dedicated to your success by providing free lifetime technical support. Our engineers and customer service teams are available to help, whether you're a potential new customer or a lifetime customer of Leer.
Construction Features
- High R-Values
- Increased insulation to reduce heat infiltration into the unit - resulting in consistent and optimal temperatures of 16°F - 24°F. There’s 3” of high-performance, eco-friendly, insulation in the ceiling and walls, and 4” of insulation in the floor.
- Rust Resistant
- The exterior of the transport is finished with a two-part primer/top coat all-weather paint to provide superior resistance to humidity, corrosion, and other weather conditions.
- Reinforced Steel Frames
- Steel frames ensure stability and protect from the vibration while traveling down the road.
- Mounting Locations
- Mounting locations available should the unit be attached to a trailer.
- Compressor Cover & Reinforced Mounting Bracket
- Compressor cover provides air flow for better cooling of the condenser and compressor. It's also a layer of protection from harmful foreign objects. The mounting bracket is reinforced to protect from vibration while traveling down the road.
Door Features
- Balloon Gaskets
- The gaskets provide a tight insulation around the doors to prevent hot air entering the unit. Therefore, making the transport more energy efficient and better at keeping your product in premium condition.
- Stainless Steel/Chrome-Finish Hardware
- All hardware, including hinges and handles, are powder coated, stainless steel or have a chrome-finish to provide greater strength durability, resistance to corrosion, and high-end look.
- Emergency Release Handle
- The inside contains an emergency release handle for additional safety.
- Oversized Transport-Style Doors
- Oversized transport-style doors large enough for full pallets.
Refrigeration Features
- Limited Maintenance
- Automatic Defrost refrigeration system to prevent frost build up.
- Various Temperatures
- Three different temperature ranges are available for optimal storage and transportation of Ice, Cooler or Frozen goods.
Interior Features
- High-End Interior Finish
- Stucco-embossed galvanized steel interior finish.
- Interior Lighting
- Standard with energy efficient LED lighting.
- Pallet Guides and Stops
- Pallet guides and stops are included to help navigate the pallets into the correct location.
- Reinforced Steel Floor
- Beneath the standard steel floor is 3/4" plywood reinforcement to provide greater durability when rolling the pallets into the transport.
