Pallet Load Ice Merchandisers

Indoor Model PL225

Interior Capacity: 520 7 lb. Bags | 200 20 lb. Bags
Dimensions (W" x D" x H"): 108 x 56 x 96.5

An indoor pallet load ice merchandiser built for maximum packaged ice capacity, faster pallet-based restocking, and reduced hand-loading.

Models & Cooling Types
Cooling Types
Model Number
Auto Defrost
L225UAGPPL
Exterior Dimensions (WxDxH)
108 x 56 x 96.5
Interior Capacity
225 Cubic Feet
Door Opening (Wx H)
28 x 56
Loading Door Size(W x H)
45 x 75
Bag Size
Auto Defrost
7 lb. Bags
520
20 lb. Bags
200
Operating Temperature
16°F - 24°F
Refrigerant
R290
Compressor HP
3/4
Product Weight
Auto Defrost (lbs.)
1780
Standard Voltage (V/Hz)
115 / 60
Alternate Voltage
Available Upon Request
Min. Circuit Required (Amps)
20 amps
Cooling Type
Amps
Auto Defrost
13
DOE Compliant
Yes
CARB Compliant
R290 Units
Certifications
UL, cUL

Indoor Model PL225

Is this model right for me?

The Indoor PL225 is a strong fit when packaged ice sells fast enough to justify a two-pallet loading workflow. Instead of restocking bag by bag, operators can load ice by pallet to reduce hand-loading, shorten replenishment time, and keep very high-volume indoor accounts stocked with less disruption.

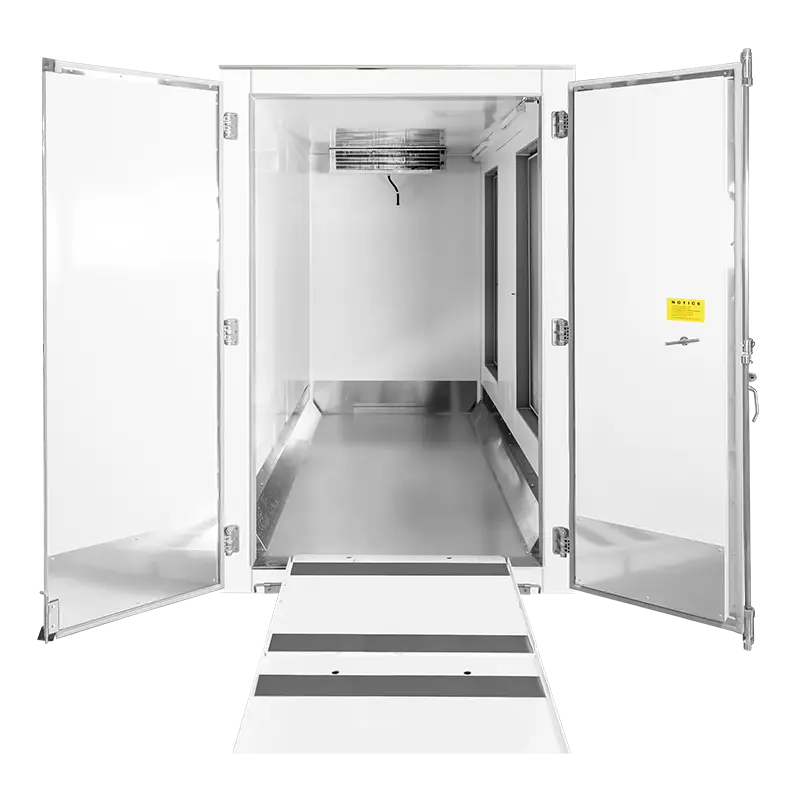

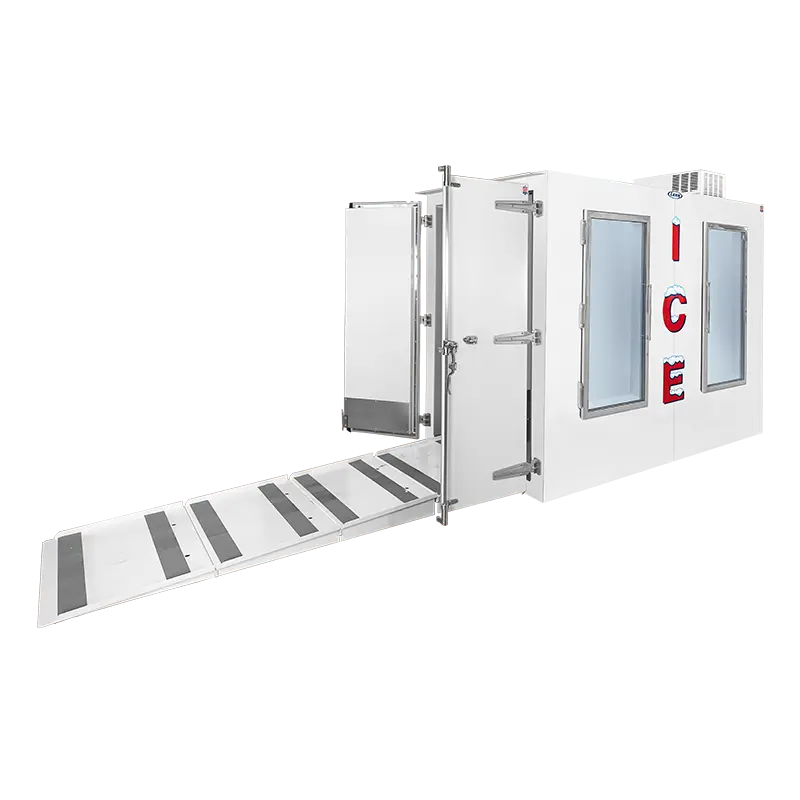

Because the PL225 is designed for pallet-based loading, it requires enough side clearance for loading door access, ramp placement, and pallet jack movement. It is best suited for locations with the volume and layout to support the workflow.

Best For

  • Very high-volume indoor packaged ice accounts
  • Retail locations where ice sells quickly and restocking happens often
  • Operators looking to reduce hand-loading, labor strain, and time on site
  • Locations where faster replenishment can help prevent out-of-stocks
  • Busy accounts that can support two-pallet ice delivery
  • Indoor merchandiser placements with side clearance for pallet loading access

Indoor Model PL225

Videos

Learn more about Leer Pallet Load Ice Merchandisers construction, and cooling types.

Pallet Load Ice Merchandiser Time Trial – PL225

Pallet Load Ice Merchandiser Overview – PL225

Pallet Load Ice Merchandiser Time Trial – PL150

Pallet Load Ice Merchandiser Overview – PL150

Indoor Model PL225

Product Literature

Spec sheets, warranty information, certifications, and other documents to help review or specify this model.

Indoor Model PL225

Support Documents

Maintenance guides, refrigerant information, troubleshooting resources, and other materials that support long-term operation.

Indoor Model PL225

Drawings

View dimensional drawings for footprint, door opening, and placement planning.
