Refrigerated Trailers

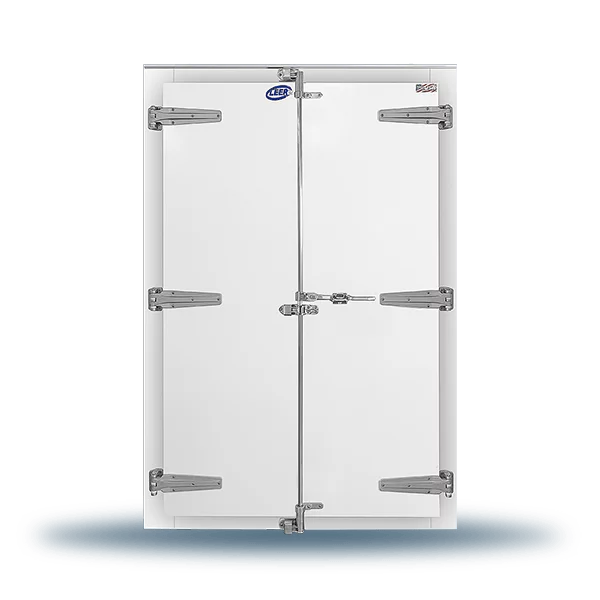

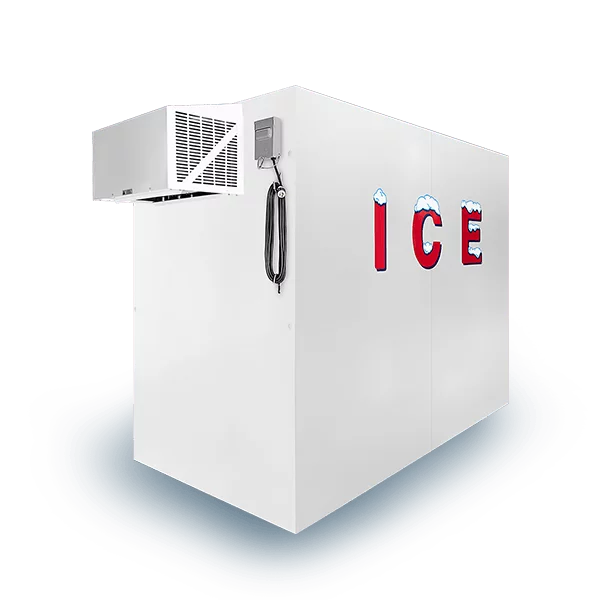

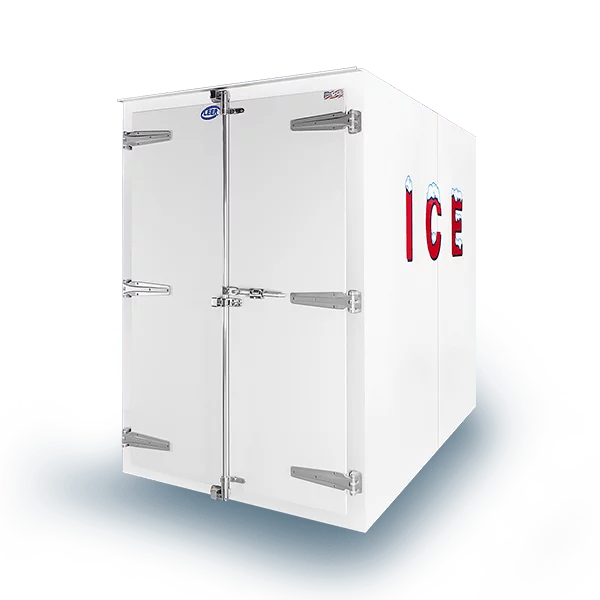

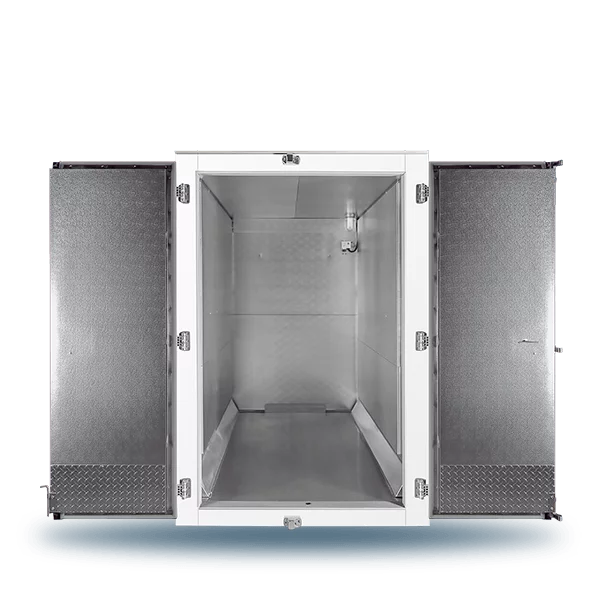

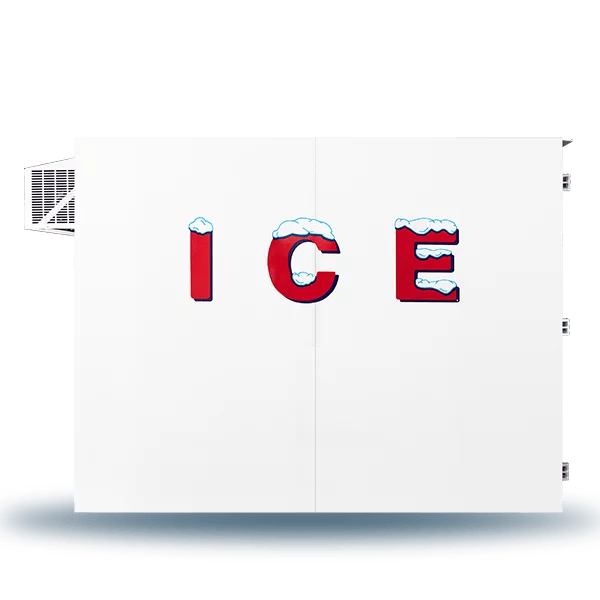

Model 5×9 Ice Transport

Interior Capacity: 520 7 lb. Bags | 200 20 lb. Bags
Interior Dimensions (W" x D" x H"):
Ice Capacity: 16°F to 20°F — 520 7 lb. bags | 200 20 lb. bags
Operating Temperature: 16°F to 20°F — set for packaged ice storage to help keep bagged ice protected and ready for sale
Interior Capacity: 220 cu. ft.
Refrigerant: R404a
Cooling Type: Auto Defrost

The Leer Model 5×9 Ice Transport is a packaged ice specialist built to help operators protect bagged ice during route delivery, event support, overflow, and seasonal demand. As part of the Leer packaged ice ecosystem, this dedicated transport extends the same cold-storage confidence operators expect from Leer Ice Merchandisers to ice on the move.

Models & Cooling Types
Cooling Types
Model Number
Auto Defrost – R404a
5X9 CP
Interior Capacity
220 Cubic Feet
Bag Size
Auto Defrost
7 lb. Bags
520
20 lb. Bags
200
Operating Temperature
16 to 20
Refrigerant
R404a
Compressor HP
3/4
Standard Voltage (V/Hz)
120/60
Min. Circuit Required (Amps)
20 amps

Model 5×9 Ice Transport

Is this model right for me?

The Model 5×9 Ice Transport is a fit when packaged ice needs dedicated cold storage for route delivery, event support, overflow inventory, or seasonal demand. It gives packaged ice operators a route-ready way to help keep bagged ice protected and ready for sale between storage, delivery, and point of sale.

Best for:

  • Dedicated packaged ice transport
  • Route delivery and restocking support
  • Event inventory, seasonal demand, or temporary ice storage
  • Bagged ice movement between storage, delivery, and point of sale
  • Operators who want ice-specific cold storage instead of flexible multi-temp use
  • Extending the Leer Ice standard beyond fixed ice merchandisers
  • Keeping packaged ice in selling condition through movement and staging

Model 5×9 Ice Transport

Videos

Watch videos that explain Leer Ice Transports, refrigerated transport construction details, packaged ice applications, and mobile cold storage support for ice on the move.

Multi-Temp Refrigerated Transport Trailer Overview – 5×10 & 4×8

From Factory Floor to the Front of the Store – How An Ice Merchandiser is Made!

Model 5×9 Ice Transport

Product Literature

Use spec sheets, warranty information, certifications, and other product literature to review details or specify the Model 5×9 Ice Transport with confidence.

Model 5×9 Ice Transport

User Manuals

Find owner and operating manuals for Leer Ice Transports to help support proper use, care, and long-term performance.

Model 5×9 Ice Transport

Support Documents

Use maintenance guides, refrigerant information, troubleshooting resources, and other support documents to help keep the Model 5×9 Ice Transport operating reliably.

Model 5×9 Ice Transport

Drawings

Review dimensional drawings to understand footprint, access points, placement needs, and how the Model 5×9 Ice Transport fits into packaged ice operations.
