International Ice Merchandisers
The iconic snow-capped ice decals you’ve seen everywhere.
Optimized for full container shipments.
Menu
Previous
Next
Model 20
- CW
- R404a
Interior Capacity7:
40 5kg Bags
40 5kg Bags
Dimensions (W mm x D mm x H mm)1-6:
760 x 710 x 1930
Additional Specifications
Model 20
Standard Model Numbers
Auto Defrost – R404a:
N/A
Cold Wall – R404a:
L020UCGE
Dimensions & Capacities
5 kg. Bags - Auto Defrost:
N/A
5 kg. Bags - Cold Wall
40
Approx. Interior Cubic Meters:
0.75
Dimensions (W mmx D mm xH mm):
760 x 710 x 1930
Door Size (W mm x H mm):
675 x 1140
Operating Temperature
(X°C - X°C):
-9 - -5
Control:
Electronic Control
Product Weight
Auto Defrost (kgs.):
N/A
Cold Wall (kgs.):
150
Electrical
Voltage (V/Hz):
230/50
Min. Circuit Required (Amps):
15
Auto Defrost (Amps):
N/A
Cold Wall (Amps):
3.4
230V/50Hz Available: Upon Request
Other
Compressor (HP):
1/3
Refrigerant:
Certifications:
CE
NSF Available: Upon Request
- Height Includes Compressor
- Add 3″ to Depth for Condensate Evaporator Pan
- Add 3″ to Depth for Low Profile Raceway
- Add 3.5″ to Depth for Glass Door & Handle
- Add 3″ to Depth for Upright Solid Door & Handle
- Add 1″ to Depth for Slant Solid Door & Handle
- Merchandiser storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.
Previous
Next
Model 280 Low Profile
- AD
- R404a
Interior Capacity7:
60 5kg Bags
60 5kg Bags
Dimensions (W mm x D mm x H mm)1-6:
1210 x 900 x 1260
Additional Specifications
Model 280 Low Profile
Standard Model Numbers
Auto Defrost – R404a:
L280LASE
Cold Wall – R404a:
N/A
Dimensions & Capacities
5 kg. Bags - Auto Defrost:
60
5 kg. Bags - Cold Wall
N/A
Approx. Interior Cubic Meters:
1
Dimensions (W mmx D mm xH mm):
1210 x 900 x 1260
Door Size (W mm x H mm):
690 x 690
Operating Temperature
(X°C - X°C):
-9 - -5
Control:
Electronic Control
Product Weight
Auto Defrost (kgs.):
150
Cold Wall (kgs.):
N/A
Electrical
Voltage (V/Hz):
230/50
Min. Circuit Required (Amps):
15
Auto Defrost (Amps):
6.3
Cold Wall (Amps):
N/A
230V/50Hz Available: Upon Request
Other
Compressor (HP):
1/3
Refrigerant:
Certifications:
CE
NSF Available: Upon Request
- Height Includes Compressor
- Add 3″ to Depth for Condensate Evaporator Pan
- Add 3″ to Depth for Low Profile Raceway
- Add 3.5″ to Depth for Glass Door & Handle
- Add 3″ to Depth for Upright Solid Door & Handle
- Add 1″ to Depth for Slant Solid Door & Handle
- Merchandiser storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.
Previous
Next

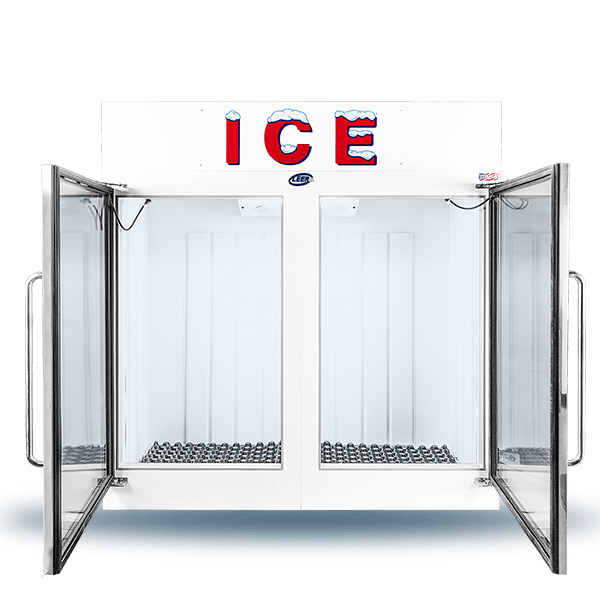

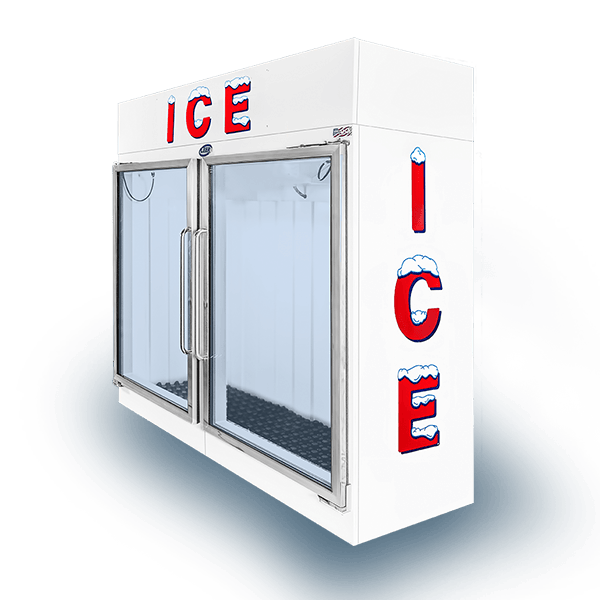

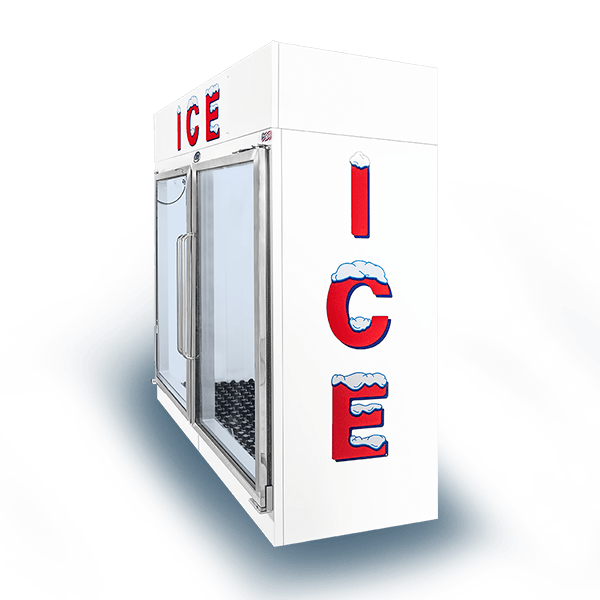

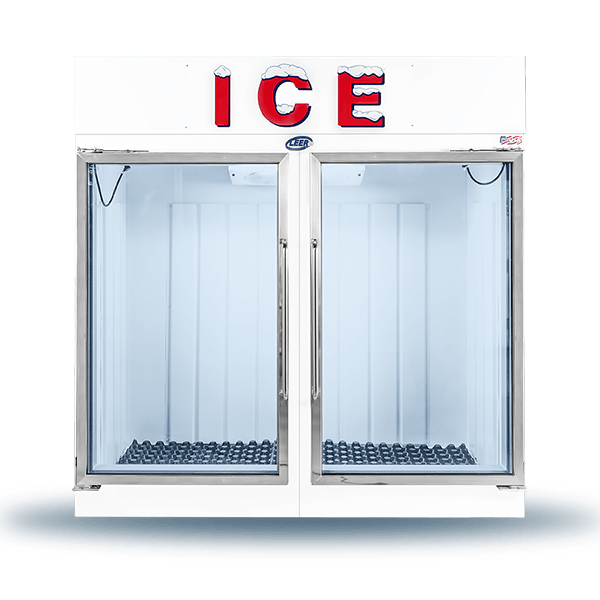

Model 60 FGF
- AD
- R404a
Interior Capacity7:
130 5kg Bags
130 5kg Bags
Dimensions (W mm x D mm x H mm)1-6:
1855mm x 760mm x 1950mm
Additional Specifications
Model 60 FGF
Standard Model Numbers
Auto Defrost – R404a:
L060UAGE-FGF
Cold Wall – R404a:
N/A
Dimensions & Capacities
5 kg. Bags - Auto Defrost:
130
5 kg. Bags - Cold Wall
N/A
Approx. Interior Cubic Meters:
1.75
Dimensions (W mmx D mm xH mm):
1855mm x 760mm x 1950mm
Door Size (W mm x H mm):
685mm x 1360mm
Operating Temperature
(X°C - X°C):
-9 - -5
Control:
Electronic Control
Product Weight
Auto Defrost (kgs.):
220
Cold Wall (kgs.):
N/A
Electrical
Voltage (V/Hz):
230/50
Min. Circuit Required (Amps):
15
Auto Defrost (Amps):
10
Cold Wall (Amps):
N/A
230V/50Hz Available: Upon Request
Other
Compressor (HP):
1/2
Refrigerant:
Certifications:
CE
NSF Available: Upon Request
- Height Includes Compressor
- Add 3″ to Depth for Condensate Evaporator Pan
- Add 3″ to Depth for Low Profile Raceway
- Add 3.5″ to Depth for Glass Door & Handle
- Add 3″ to Depth for Upright Solid Door & Handle
- Add 1″ to Depth for Slant Solid Door & Handle
- Merchandiser storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.
Previous
Next
Model 150 “Knockdown”
- AD
- R404a
Interior Capacity7:
270 5kg Bags
270 5kg Bags
Dimensions (W mm x D mm x H mm)1-6:
2605mm x 1170mm x 2605mm
Additional Specifications
Model 150 “Knockdown”
Standard Model Numbers
Auto Defrost – R404a:
L150UASK
Cold Wall – R404a:
N/A
Dimensions & Capacities
5 kg. Bags - Auto Defrost:
270
5 kg. Bags - Cold Wall
N/A
Approx. Interior Cubic Meters:
4.25
Dimensions (W mmx D mm xH mm):
2605mm x 1170mm x 2605mm
Door Size (W mm x H mm):
690mm x 1170mm
Operating Temperature
(X°C - X°C):
-9 - -5
Control:
Electronic Control
Product Weight
Auto Defrost (kgs.):
480
Cold Wall (kgs.):
N/A
Electrical
Voltage (V/Hz):
230/50
Min. Circuit Required (Amps):
15
Auto Defrost (Amps):
9.2
Cold Wall (Amps):
N/A
230V/50Hz Available: Upon Request
Other
Compressor (HP):
3/4
Refrigerant:
Certifications:
CE
NSF Available: Upon Request
- Height Includes Compressor
- Add 3″ to Depth for Condensate Evaporator Pan
- Add 3″ to Depth for Low Profile Raceway
- Add 3.5″ to Depth for Glass Door & Handle
- Add 3″ to Depth for Upright Solid Door & Handle
- Add 1″ to Depth for Slant Solid Door & Handle
- Merchandiser storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.
Want More Sizes?
While our entire catalog of merchandisers is available for export, we’ve leveraged our shipping and engineering expertise to offer special models designed specifically for reduced freight costs.
Leer Indoor Ice Merchandisers Features
Click on a number to learn more about each product feature.
Leer Inc.
- Your Partner in Temperature-Controlled Storage Solutions
- With over 65 years of industry expertise, innovation and focus on manufacturing excellence, we're confident our products feature industry leading efficiency, reliability, durability and longevity - delivering an unbeatable value to you and your company.
- Made in Wisconsin, USA
- Manufactured under a strict quality control program to ensure our products are delivered right the first time, right every time.
- Iconic Red Snow-Capped ICE Decals
- The trademarked ICE decals are a staple of the Packaged Ice Industry and Leer’s unique signature that you can’t get anywhere else.
- We're With You Every Degree of the Way
- As an employee owned company, our success depends on your success. We stand behind our products and are dedicated to your success by providing free lifetime technical support. Our engineers and customer service teams are available to help, whether you're a potential new customer or a lifetime customer of Leer.
Construction Features
- Patented Construction Features
- All steel construction with no fasteners, welding, or adhesives. The offset seams are precision machine formed, resulting in water-tight lock-form seams that create a stronger and more durable merchandiser. This increases longevity by reducing moisture penetration into the insulation.
- High R-Values
- Increased insulation to reduce heat infiltration into the unit - resulting in consistent and optimal temperatures of 16°F - 24°F. There’s 2.5" of high-performance, eco-friendly, insulation in the ceiling and walls, and 3” of insulation in the floor.
- Rust Resistant
- The exterior of the merchandiser is finished with a two-part primer/top coat all-weather paint to provide superior resistance to humidity, corrosion, and other weather conditions.
Door Features
- High-Impact Breaker Strip
- High-impact breaker strip, located around the perimeter of the door jamb, durable enough to withstand excessive wear and tear and provide a thermal break between the merchandiser interior and exterior.
- Aluminum Door Frame
- The glass is encased in a long-lasting, durable, light-weight, aluminum frame.
- Insulated Tempered Glass
- The doors contain argon-filled insulated tempered glass. The argon insulation decreases the merchandisers' U-Value, which is essentially the amount of solar heat transfer the glass allows into the unit.
- Spring-Assisted Hinges
- The hinges are adjustable to ensure a lifetime of level, and solid sealing doors. Additionally, the springs help the door close securely and avoid accidentally being left open.
- Chrome-Finish Hardware
- All hardware, including hinges and handles, have a chrome-finish to provide greater, strength durability, resistance to corrosion, and aesthetics.
- Large Door Openings
- Oversized door openings for increased view and accessibility of the ice, and ease of merchandising during restock.
Refrigeration Features
- Serviceability
- On Automatic Defrost units, the drop-down evaporator allows for easier troubleshooting, maintenance, and servicing.
- Full Top and Compressor Cover
- Standard and provide air flow for better cooling of the condenser and compressor. It's also a layer of protection from harmful foreign objects.
- Intelligent Electronic Controls
- Electronic controls feature a digital display, factory preset advanced custom settings, and built-in intelligence to ensure your merchandiser will consistently operate at the optimal settings for your environmental needs.
Interior Features
- High-End Interior Finish
- Bright white interior finish.
- Interior Lighting
- Standard with energy efficient LED lighting to help showcase the ice.
Leer Outdoor Ice Merchandisers Features
Click on a number to learn more about each product feature.
Leer Inc.
- Your Partner in Temperature-Controlled Storage Solutions
- With over 65 years of industry expertise, innovation and focus on manufacturing excellence, we're confident our products feature industry leading efficiency, reliability, durability and longevity - delivering an unbeatable value to you and your company.
- Made in Wisconsin, USA
- Manufactured under a strict quality control program to ensure our products are delivered right the first time, right every time.
- Iconic Red Snow-Capped ICE Decals
- The trademarked ICE decals are a staple of the Packaged Ice Industry and Leer’s unique signature that you can’t get anywhere else.
- We're With You Every Degree of the Way
- As an employee owned company, our success depends on your success. We stand behind our products and are dedicated to your success by providing free lifetime technical support. Our engineers and customer service teams are available to help, whether you're a potential new customer or a lifetime customer of Leer.
Construction Features
- Patented Construction Features
- All steel construction with no fasteners, welding, or adhesives. The offset seams are precision machine formed, resulting in water-tight lock-form seams that create a stronger and more durable merchandiser. This increases longevity by reducing moisture penetration into the insulation.
- High R-Values
- Increased insulation to reduce heat infiltration into the unit - resulting in consistent and optimal temperatures of 16°F - 24°F. There’s 2.5" of high-performance, eco-friendly, insulation in the ceiling and walls, and 3" of insulation in the floor.
- Rust Resistant
- The exterior of the merchandiser is finished with a two-part primer/top coat all-weather paint to provide superior resistance to humidity, corrosion, and other weather conditions.
Door Features
- High-Impact Breaker Strip
- High-impact breaker strip, located around the perimeter of the door jamb, durable enough to withstand excessive wear and tear and provide a thermal break between the merchandiser interior and exterior.
- Top-of-the-Line Door Gaskets
- The gaskets contain extra air chambers as well as a magnetic strip to provide a tight insulation around the doors. The gasket material is Santoprene®, which is designed to withstand harsh outdoor climates without breaking or becoming brittle. Together these features improve the sealing performance and durability of the gaskets and merchandiser door. Therefore, making the merchandiser more energy efficient and better at keeping ice in premium condition.
- Enhanced Door Frames
- The door frame is a combination of both rigid and flexible PVC, which provides better protection against dirt and water in the field and foam exposure during the manufacturing process.
- Inset Doors
- The 2" inset doors provide greater insulation, reduce condensation, and improves the performance of merchandiser.
- Rain Shield
- All doors contain a rain shield to divert water from dripping onto the doors or into the unit.
- Steel Doors with Premium Paint
- Galvanized steel doors top coated with a premium exterior grade paint, which provides resistance to scratches, scuffs, dents, and protection from the outside elements.
- Spring-Assisted Hinges
- The hinges are adjustable to ensure a lifetime of level, and solid sealing doors. Additionally, the springs help the door close securely and avoid accidentally being left open.
- Chrome-Finish Hardware
- All hardware, including hinges and handles, have a chrome-finish to provide greater, strength durability, resistance to corrosion, and aesthetics.
- Large Door Openings
- Oversized door openings for increased view and accessibility of the ice, and ease of merchandising during restock.
- Locking Feature
- Doors contain a lockable hasp to protect from theft.
Refrigeration Features
- Serviceability
- On Automatic Defrost units, the drop-down evaporator allows for easier troubleshooting, maintenance, and servicing.
- Compressor Cover
- Standard and provides air flow for better cooling of the condenser and compressor. It's also a layer of protection from harmful foreign objects.
- Intelligent Electronic Controls
- Electronic controls feature a digital display, factory preset advanced custom settings, and built-in intelligence to ensure your merchandiser will consistently operate at the optimal settings for your environmental needs.
Interior Features
- High-End Interior Finish
- Stucco-embossed galvanized steel interior finish.
