Indoor Ice Merchandisers

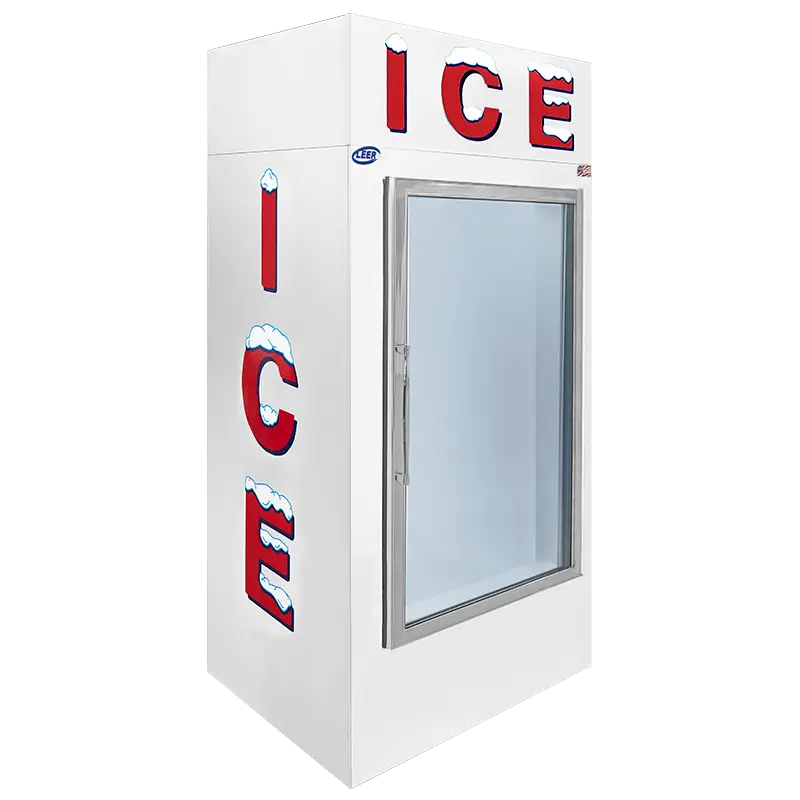

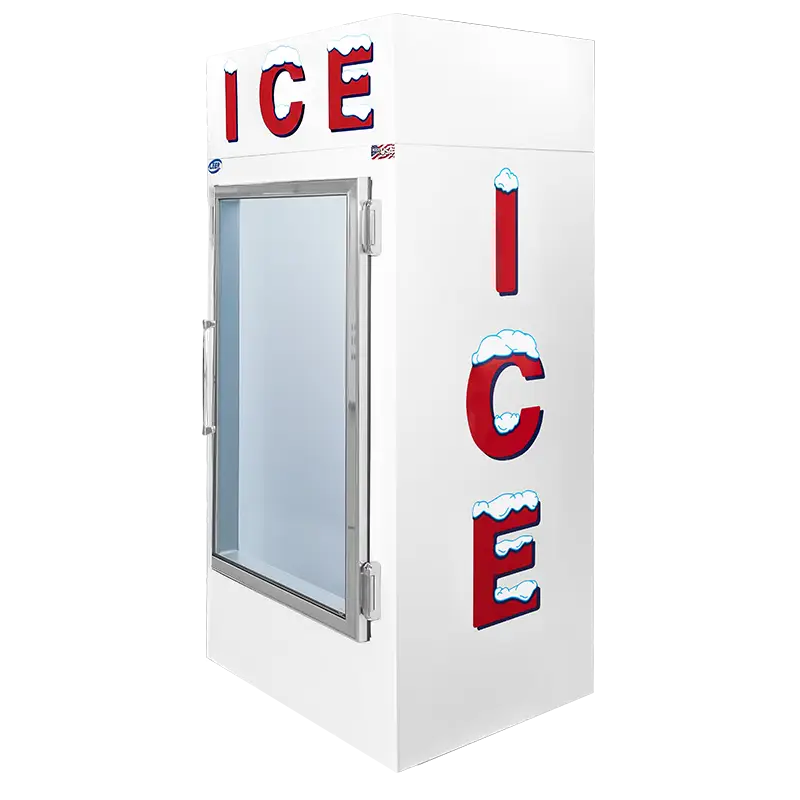

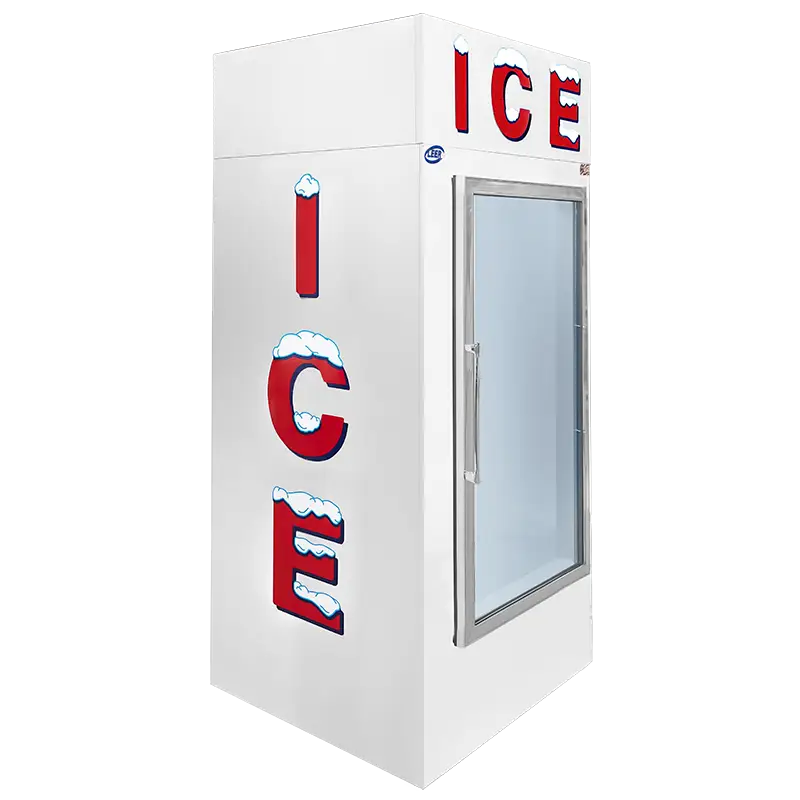

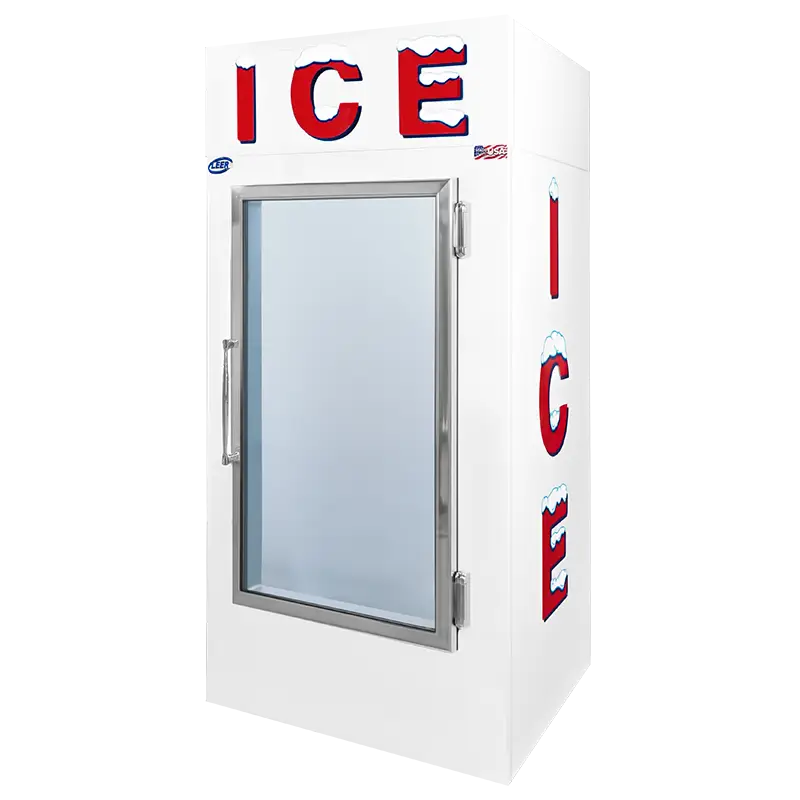

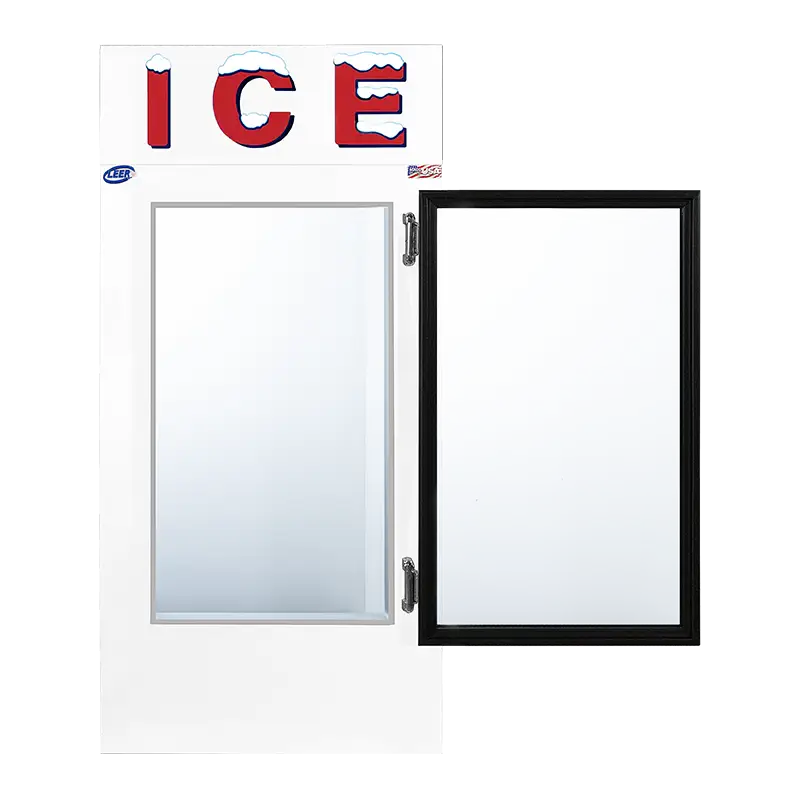

Model 30

Interior Capacity: 80 7 lb. Bags | 20 20 lb. Bags
Dimensions (W" x D" x H"): 36 x 30 x 76.5

A compact indoor ice merchandiser designed for reliable packaged ice storage where floor space matters.

Models & Cooling Types
Cooling Types
Model Number
Auto Defrost
L030UAGP
Cold Wall
L030UCGP
Exterior Dimensions (WxDxH)
36 x 30 x 76.5
Interior Capacity
30 Cubic Feet
Door Opening (Wx H)
28 x 47
Bag Size
Auto Defrost
Cold Wall
7 lb. Bags
80
80
20 lb. Bags
20
30
Operating Temperature
16°F - 24°F
Refrigerant
R290
Compressor HP
1/3
Product Weight
Auto Defrost (lbs.)
345
Cold Wall (lbs.)
330
Standard Voltage (V/Hz)
115 / 60
Alternate Voltage
230V/50Hz (Available Upon Request)
Min. Circuit Required (Amps)
15 amps
Cooling Type
Amps
Auto Defrost
6.3
Cold Wall
6.3
DOE Compliant
Yes
CARB Compliant
Yes
NSF
Available
Certifications
UL, cUL, CE

Model 30

Is this model right for me?

The Model 30 is a good fit when you need dependable indoor packaged ice storage in a compact footprint. It works well for smaller selling spaces, secondary ice locations, or businesses that need reliable ice storage without stepping up to a larger merchandiser.

Best For

  • Smaller indoor merchandising spaces
  • Convenience stores, liquor stores, and specialty retail
  • Moderate packaged ice demand
  • Secondary or supplemental ice storage
  • Locations where floor space is limited

Model 30

Videos

Learn more about Leer Indoor Ice Merchandisers construction, and cooling types.

From Factory Floor to the Front of the Store – How An Ice Merchandiser is Made!

Indoor Ice Merchandiser Overview

Model 30

Product Literature

Spec sheets, warranty information, certifications, and other documents to help review or specify this model.

Model 30

Support Documents

Maintenance guides, refrigerant information, troubleshooting resources, and other materials that support long-term operation.

Model 30

Drawings

View dimensional drawings for footprint, door opening, and placement planning.
