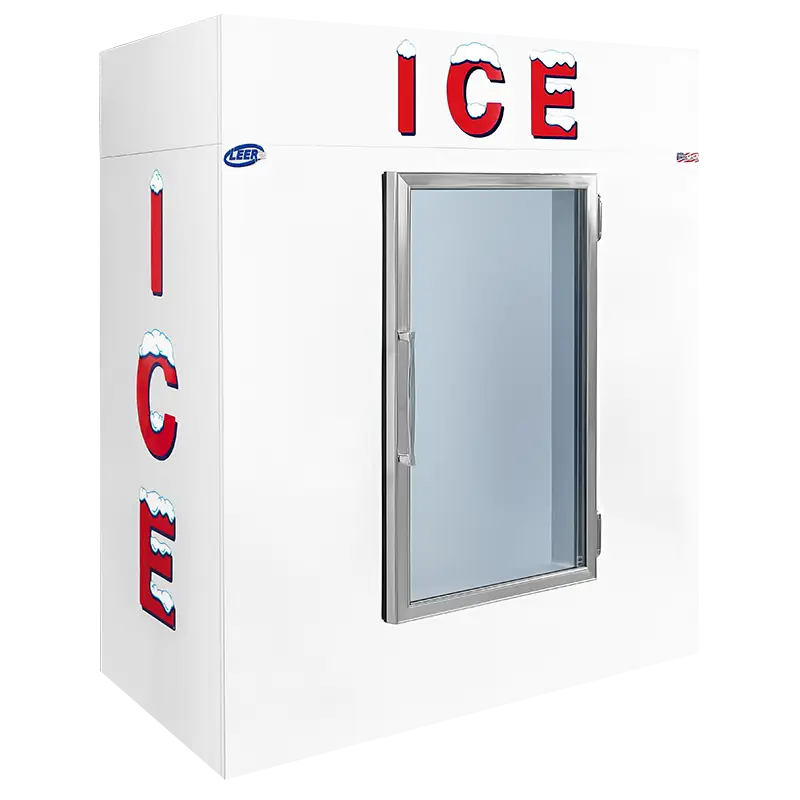

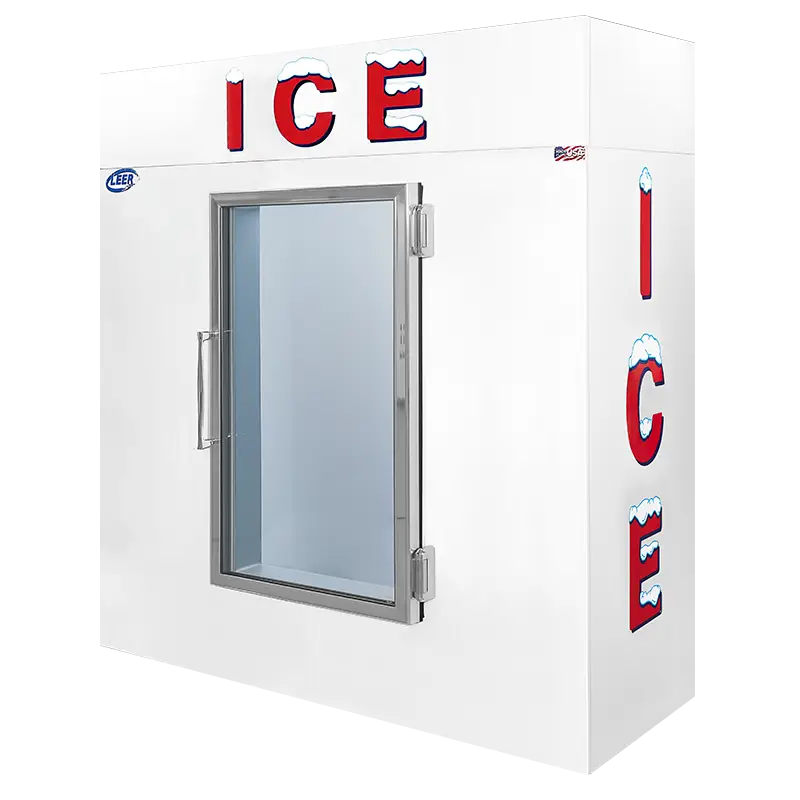

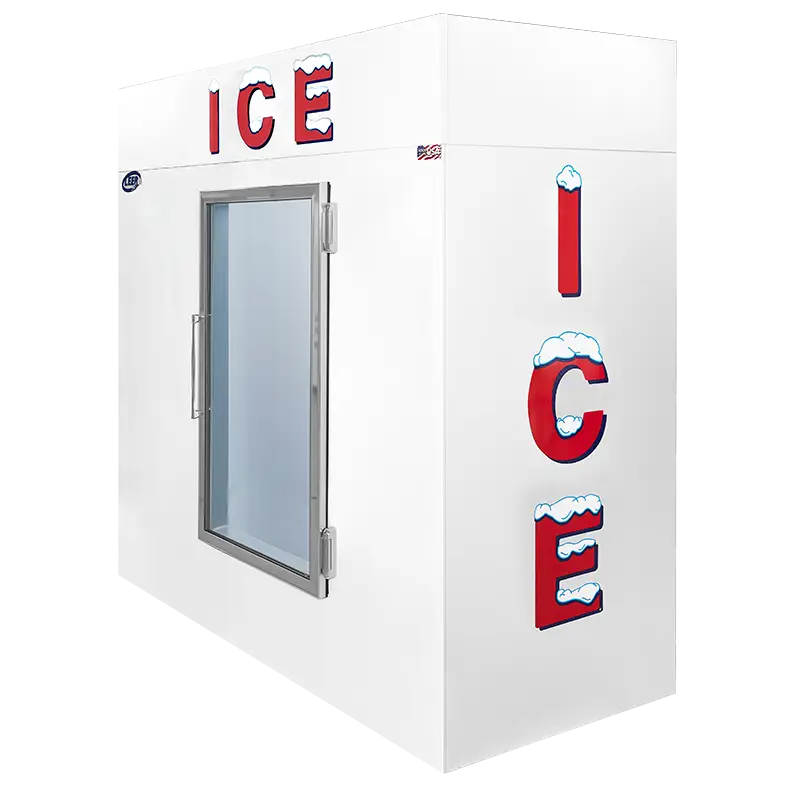

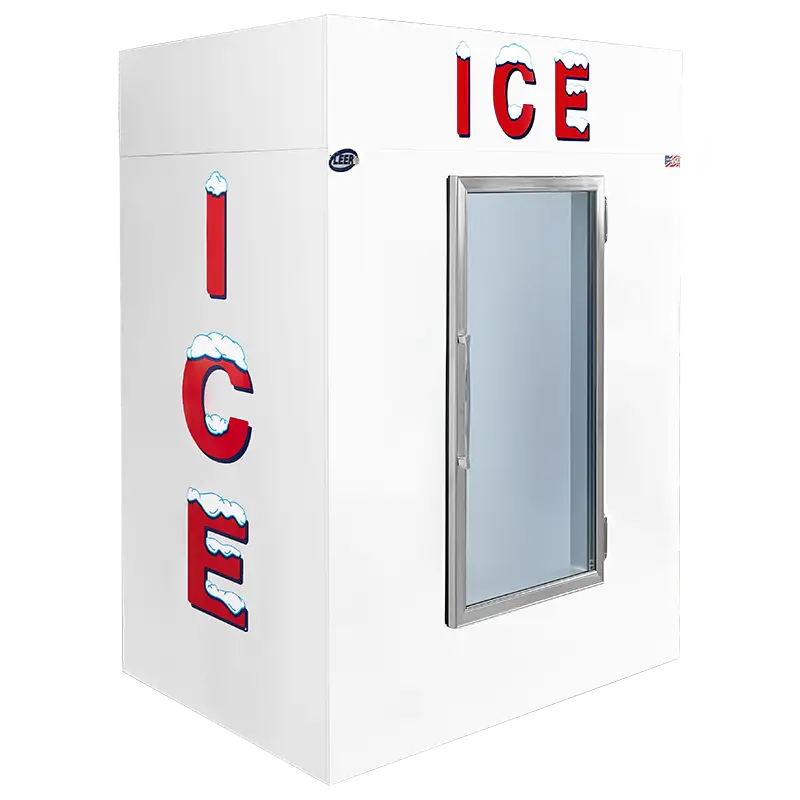

Indoor Ice Merchandisers

Model 65

Interior Capacity: 170 7 lb. Bags | 65 20 lb. Bags
Dimensions (W" x D" x H"): 64 x 35.5 x 76.5

An everyday-capacity indoor ice merchandiser with a narrower, deeper cabinet format and a single customer access door.

Models & Cooling Types
Cooling Types
Model Number
Auto Defrost
L065UAGP
Cold Wall
L065UCGP
Exterior Dimensions (WxDxH)
64 x 35.5 x 76.5
Interior Capacity
65 Cubic Feet
Door Opening (Wx H)
28 x 47
Bag Size
Auto Defrost
Cold Wall
7 lb. Bags
170
190
20 lb. Bags
65
70
Operating Temperature
16°F - 24°F
Refrigerant
R290
Compressor HP
1/3
Product Weight
Auto Defrost (lbs.)
490
Cold Wall (lbs.)
455
Standard Voltage (V/Hz)
115 / 60
Alternate Voltage
230V/50Hz (Available Upon Request)
Min. Circuit Required (Amps)
15 amps
Cooling Type
Amps
Auto Defrost
6.3
Cold Wall
6.3
DOE Compliant
Yes
CARB Compliant
Yes
NSF
Available
Certifications
UL, cUL, CE

Model 65

Is this model right for me?

The Model 65 offers a narrower, deeper cabinet than the Model 60 while maintaining similar packaged ice capacity. It’s a strong fit for indoor locations where width is limited but everyday ice sales still require dependable storage. Compared to the Model 64, which shares the same exterior dimensions, the Model 65 uses a single customer access door and lower electrical draw for locations where simple customer flow and efficient operation are priorities.

Best For

  • Indoor spaces that need more capacity without a wider cabinet
  • Locations where a single customer access door keeps traffic flow simple
  • Convenience stores, liquor stores, and retail locations with steady ice demand
  • Businesses looking for a narrower, deeper alternative to the Model 60
  • Sites where lower electrical draw may be preferred

Model 65

Videos

Learn more about Leer Indoor Ice Merchandisers construction, and cooling types.

From Factory Floor to the Front of the Store – How An Ice Merchandiser is Made!

Indoor Ice Merchandiser Overview

Model 65

Product Literature

Spec sheets, warranty information, certifications, and other documents to help review or specify this model.

Model 65

Support Documents

Maintenance guides, refrigerant information, troubleshooting resources, and other materials that support long-term operation.

Model 65

Drawings

View dimensional drawings for footprint, door opening, and placement planning.
