Outdoor Ice Merchandisers

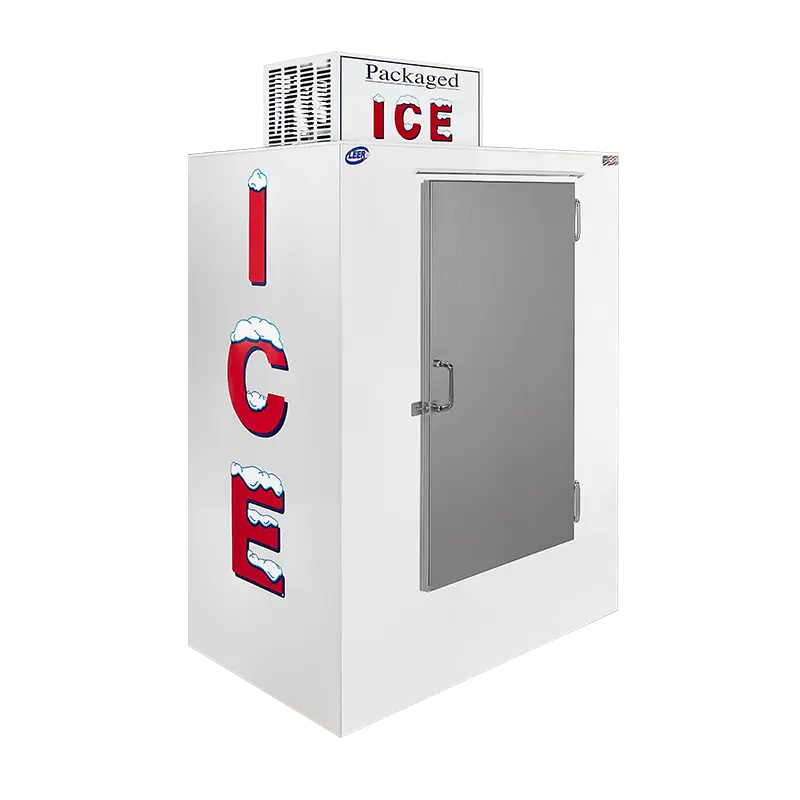

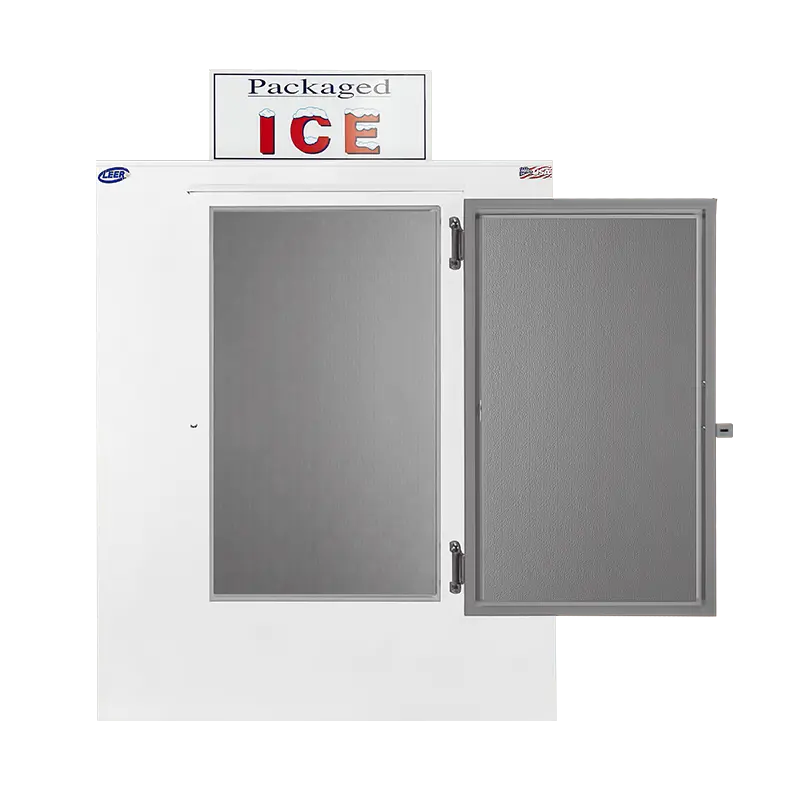

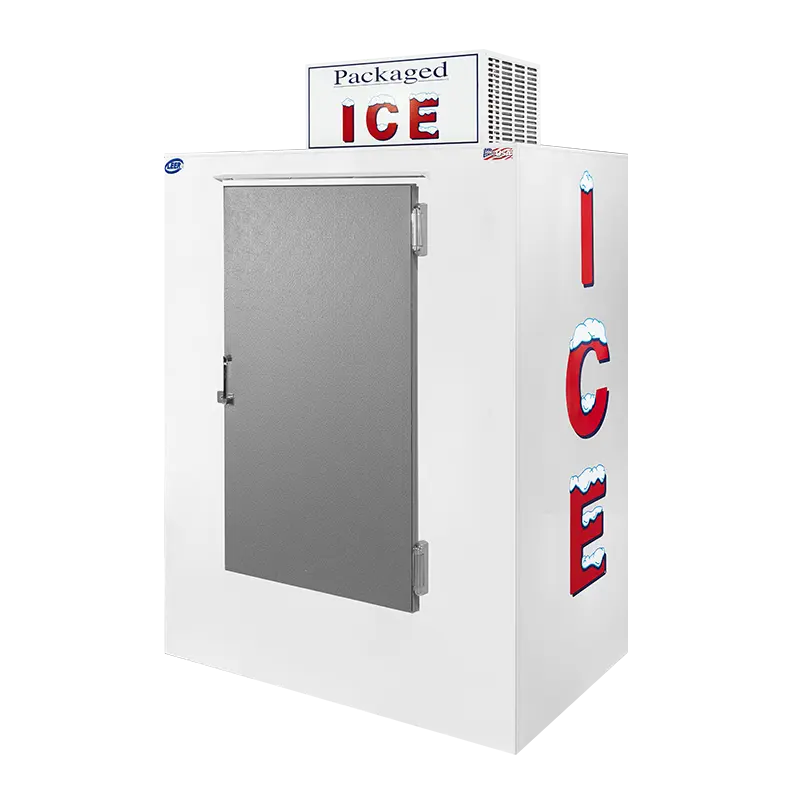

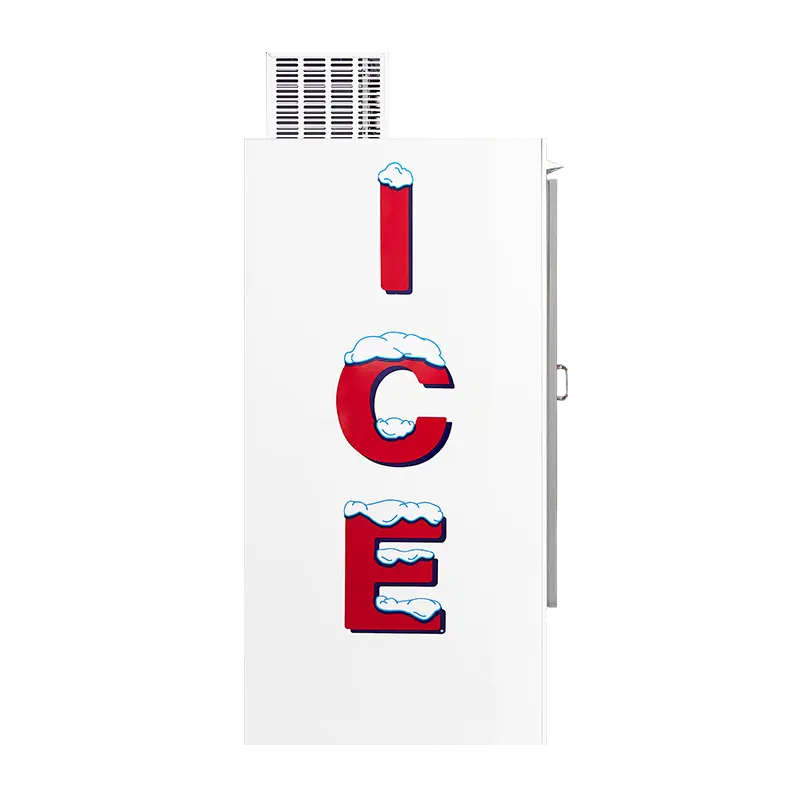

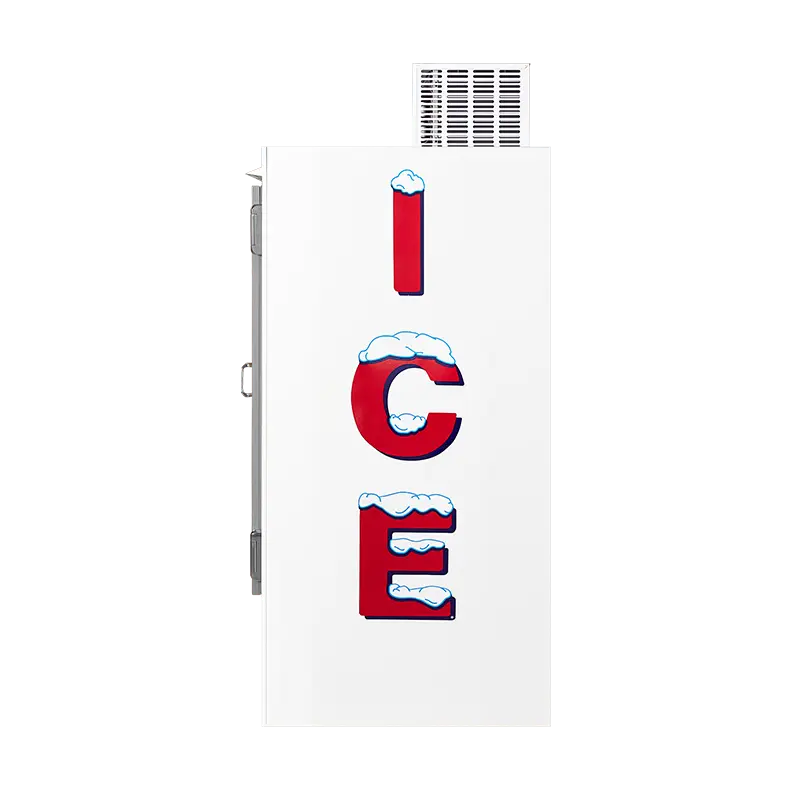

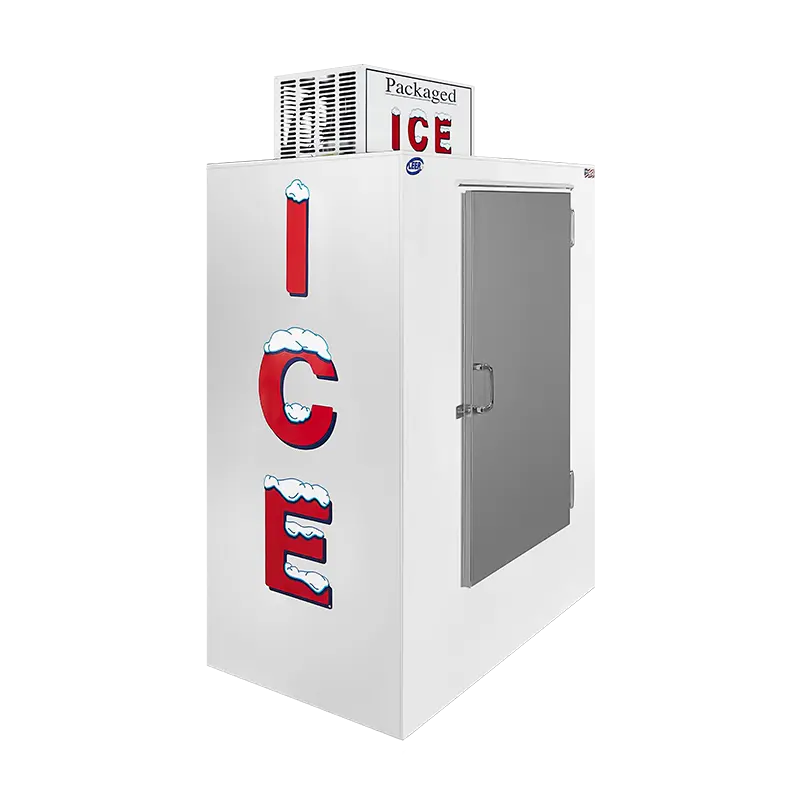

Outdoor Model 40

Interior Capacity: 120 7 lb. Bags | 45 20 lb. Bags

Dimensions (W" x D" x H"): 50.5 x 30 x 76.5

A moderate-capacity outdoor ice merchandiser built for reliable packaged ice storage in a manageable footprint.

Cooling Type

Clear

Add to quote

Models & Cooling Types

Cooling Types	Model Number
Auto Defrost	L040UASP
Cold Wall	L040UCSP

Dimensions & Capacity

Exterior Dimensions (WxDxH)

50.5 x 30 x 76.5

Interior Capacity

40 Cubic Feet

Door Opening (Wx H)

27 x 46

Bag Size	Auto Defrost	Cold Wall
7 lb. Bags	120	130
20 lb. Bags	45	50

Performance & Operation

Operating Temperature

16°F - 24°F

Refrigerant

R290

Compressor HP

1/3

Product Weight
Auto Defrost (lbs.)	350
Cold Wall (lbs.)	325

Electrical & Compliance

Standard Voltage (V/Hz)

115 / 60

Alternate Voltage

230V/50Hz (Available Upon Request)

Min. Circuit Required (Amps)

15 amps

Cooling Type	Amps
Auto Defrost	6.3
Cold Wall	6.3

Compliance & Certifications

DOE Compliant

Yes

CARB Compliant

Upon Request

NSF

Upon Request

Certifications

UL, cUL, CE

Outdoor Model 40

Is this model right for me?

The Model 40 is a good fit when you need more outdoor packaged ice storage than a compact merchandiser can provide, while still keeping the footprint manageable. It works well for exterior merchandising areas, secondary ice locations, or businesses that need added capacity without stepping up to a larger outdoor model.

Best For

Outdoor merchandising spaces that need more capacity than a compact model
Convenience stores, liquor stores, grocery stores, and specialty retail
Moderate everyday packaged ice demand
Secondary or supplemental outdoor ice storage
Locations that need added capacity without a large outdoor footprint
Businesses that want outdoor ice storage built with R290 refrigerant and long-term compliance in mind
