Outdoor Ice Merchandisers

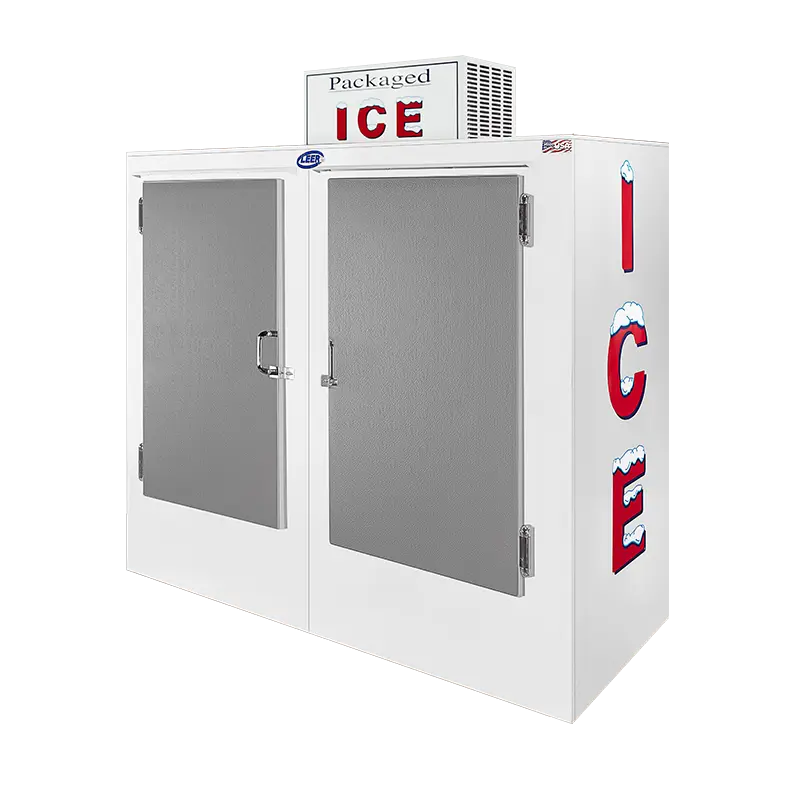

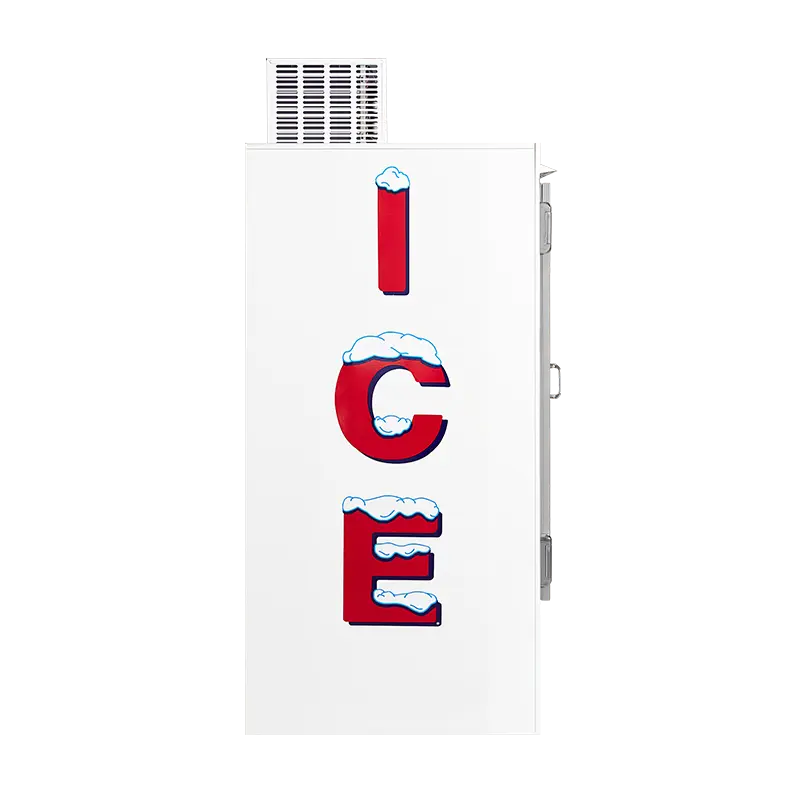

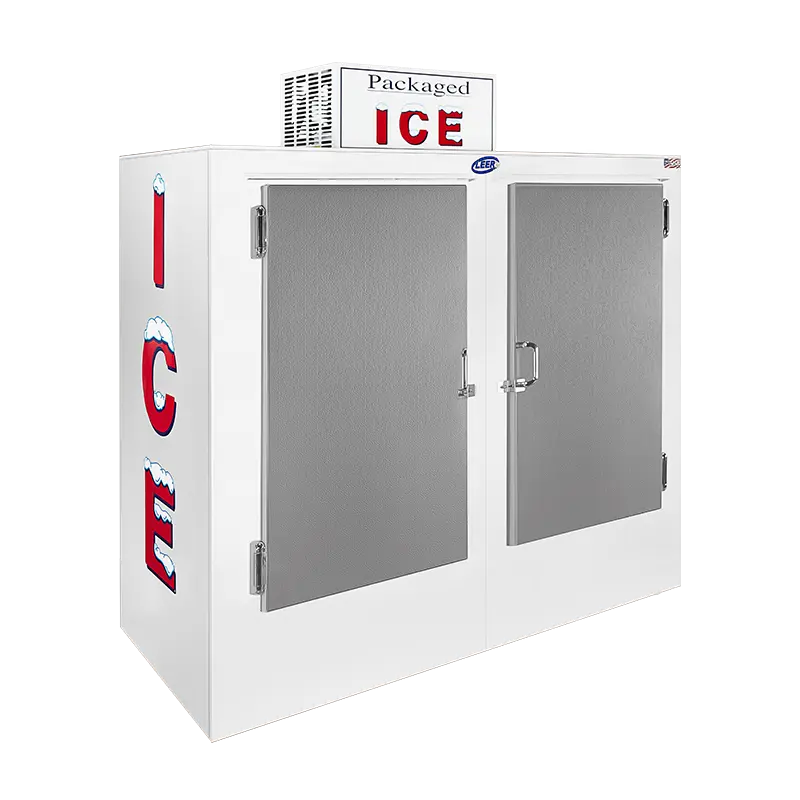

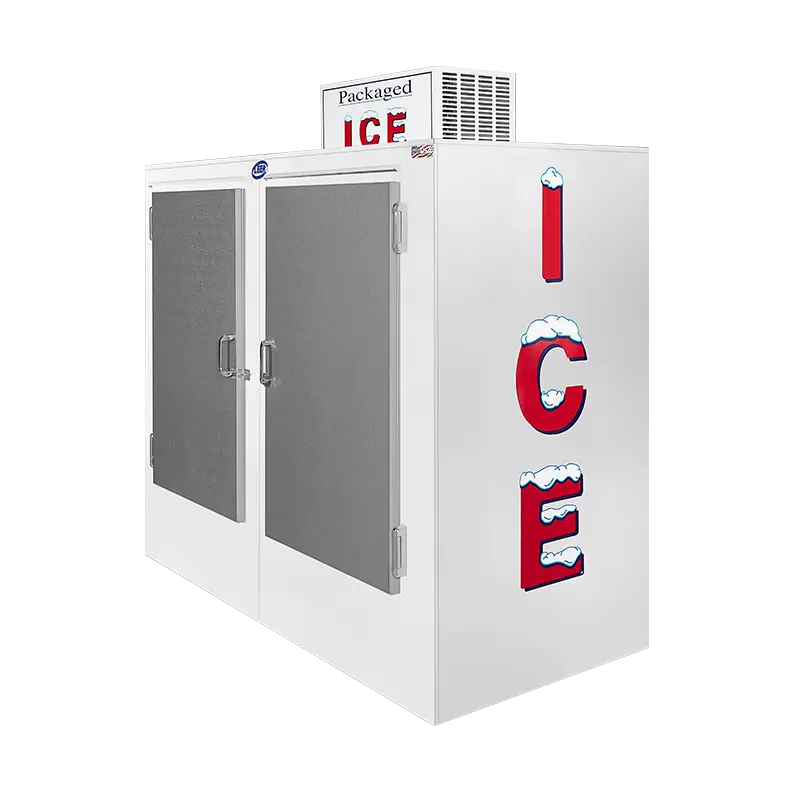

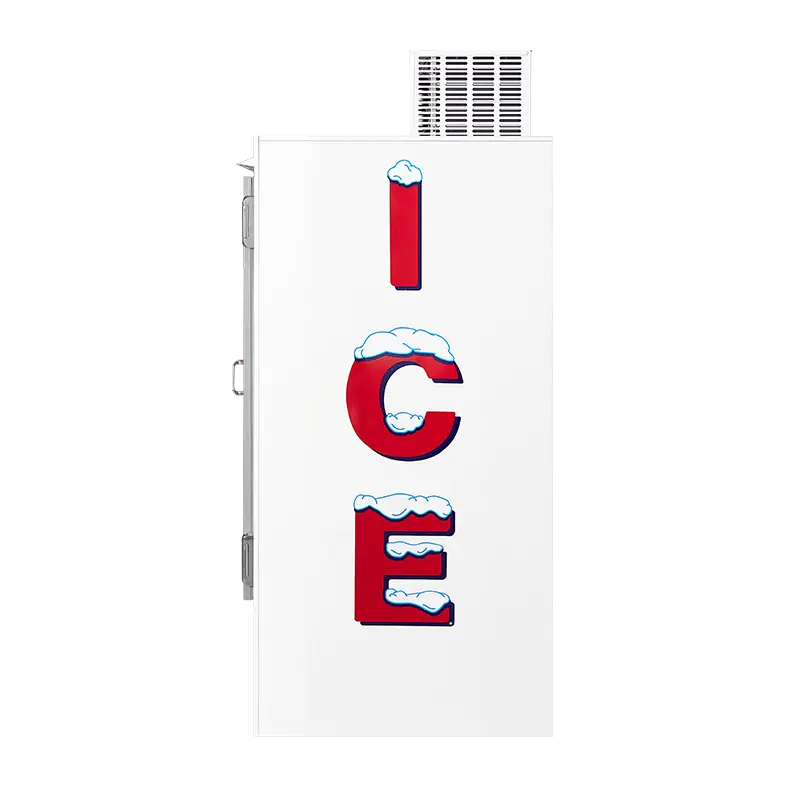

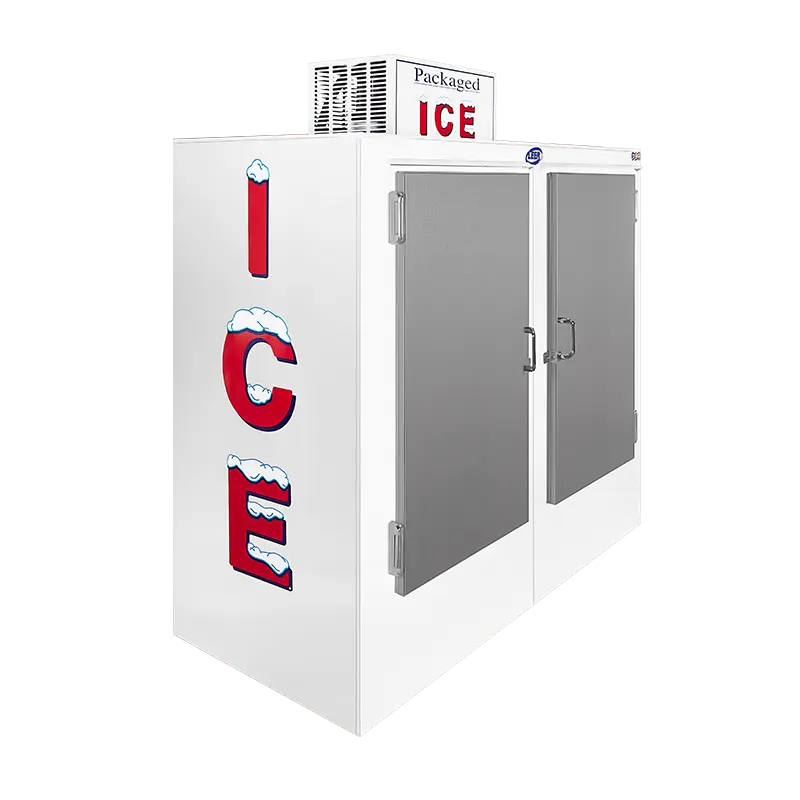

Outdoor Model 60

Interior Capacity: 180 7 lb. Bags | 70 20 lb. Bags
Dimensions (W" x D" x H"): 73 x 30 x 76.5

An everyday-capacity outdoor ice merchandiser built for reliable packaged ice storage in retail locations with steady customer demand.

Models & Cooling Types
Cooling Types
Model Number
Auto Defrost
L060UASP
Cold Wall
L060UCSP
Exterior Dimensions (WxDxH)
73 x 30 x 76.5
Interior Capacity
60 Cubic Feet
Door Opening (Wx H)
27 x 46
Bag Size
Auto Defrost
Cold Wall
7 lb. Bags
180
200
20 lb. Bags
70
80
Operating Temperature
16°F - 24°F
Refrigerant
R290
Compressor HP
1/3
Product Weight
Auto Defrost (lbs.)
425
Cold Wall (lbs.)
455
Standard Voltage (V/Hz)
115 / 60
Alternate Voltage
230V/50Hz (Available Upon Request)
Min. Circuit Required (Amps)
15 amps
Cooling Type
Amps
Auto Defrost
6.3
Cold Wall
6.3
DOE Compliant
Yes
CARB Compliant
Upon Request
NSF
Upon Request
Certifications
UL, cUL, CE

Outdoor Model 60

Is this model right for me?

The Model 60 is a good fit when you need dependable packaged ice storage with more capacity for steady outdoor customer demand. It works well for retail locations that sell packaged ice regularly and need a larger outdoor merchandising presence without moving into the biggest models.

Best For

  • Outdoor merchandising spaces with steady packaged ice sales
  • Convenience stores, liquor stores, grocery stores, and retail locations
  • Businesses that need more capacity than smaller outdoor models
  • Primary outdoor packaged ice merchandising
  • Locations that want a larger ice presence without stepping into high-capacity outdoor models
  • Businesses that want outdoor ice storage built with R290 refrigerant and long-term compliance in mind

Outdoor Model 60

Videos

Learn more about Leer Outdoor Ice Merchandisers construction, and cooling types.

From Factory Floor to the Front of the Store – How An Ice Merchandiser is Made!

Outdoor Ice Merchandiser Overview

Outdoor Model 60

Product Literature

Spec sheets, warranty information, certifications, and other documents to help review or specify this model.

Outdoor Model 60

Support Documents

Maintenance guides, refrigerant information, troubleshooting resources, and other materials that support long-term operation.

Outdoor Model 60

Drawings

View dimensional drawings for footprint, door opening, and placement planning.
