Outdoor Ice Merchandisers

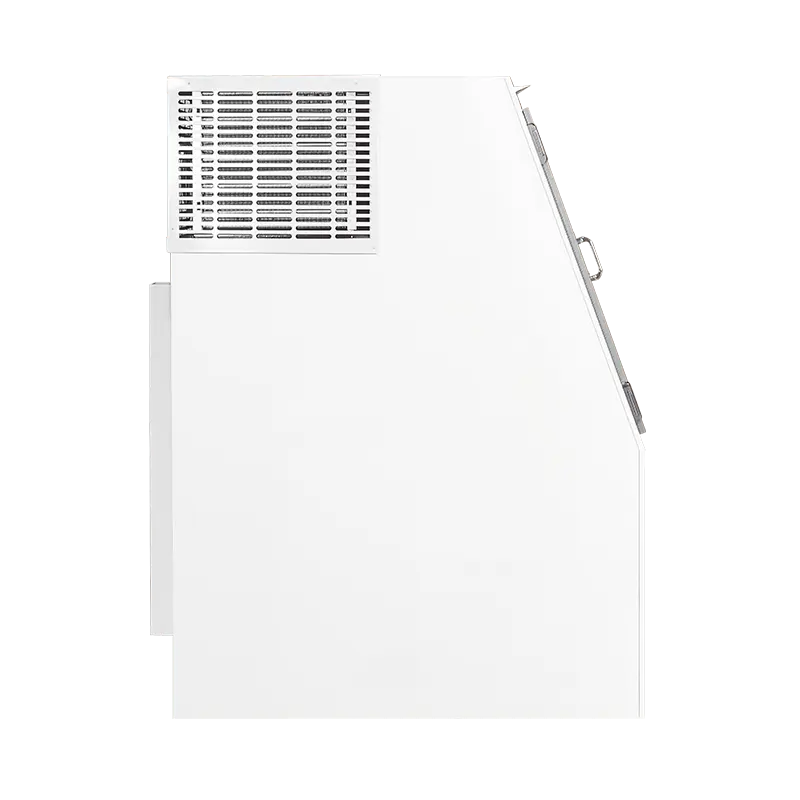

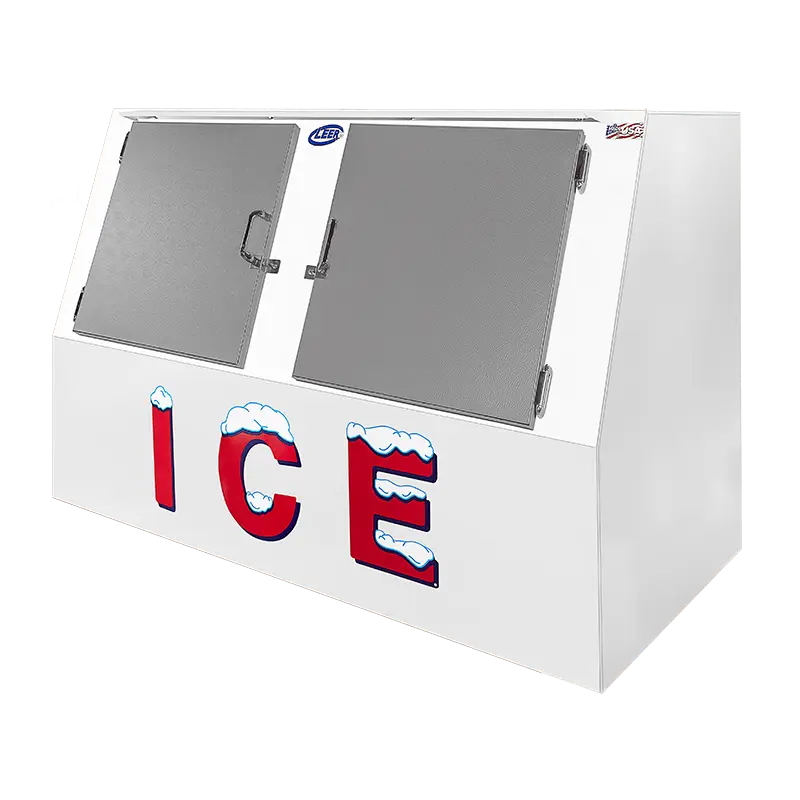

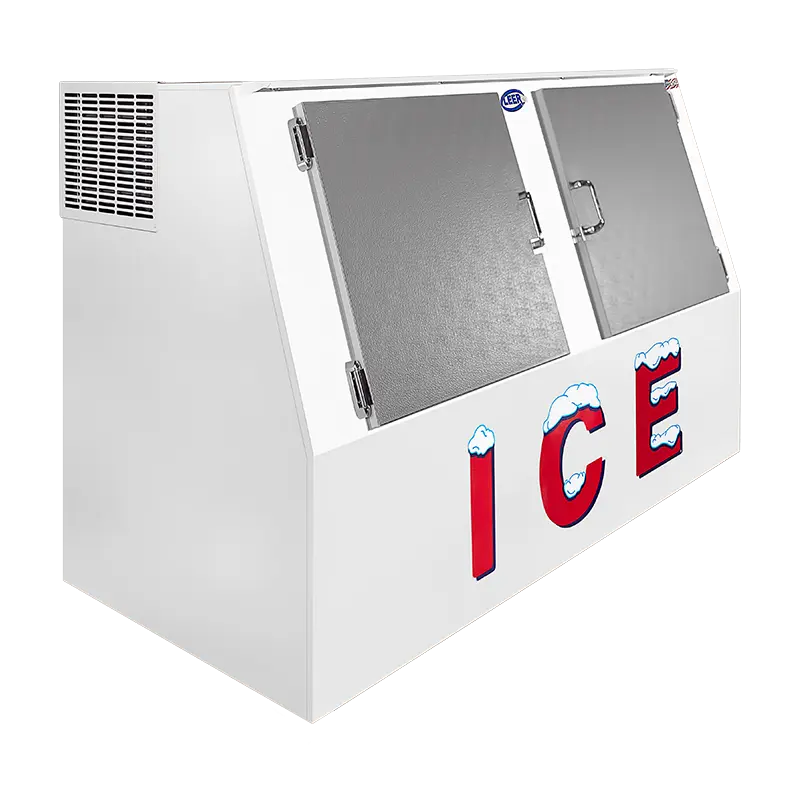

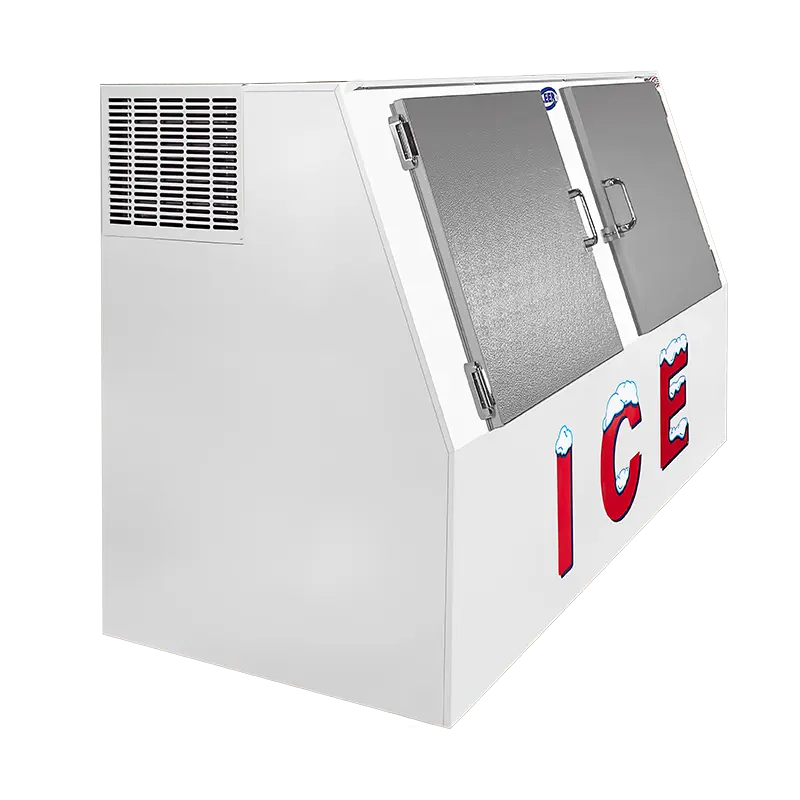

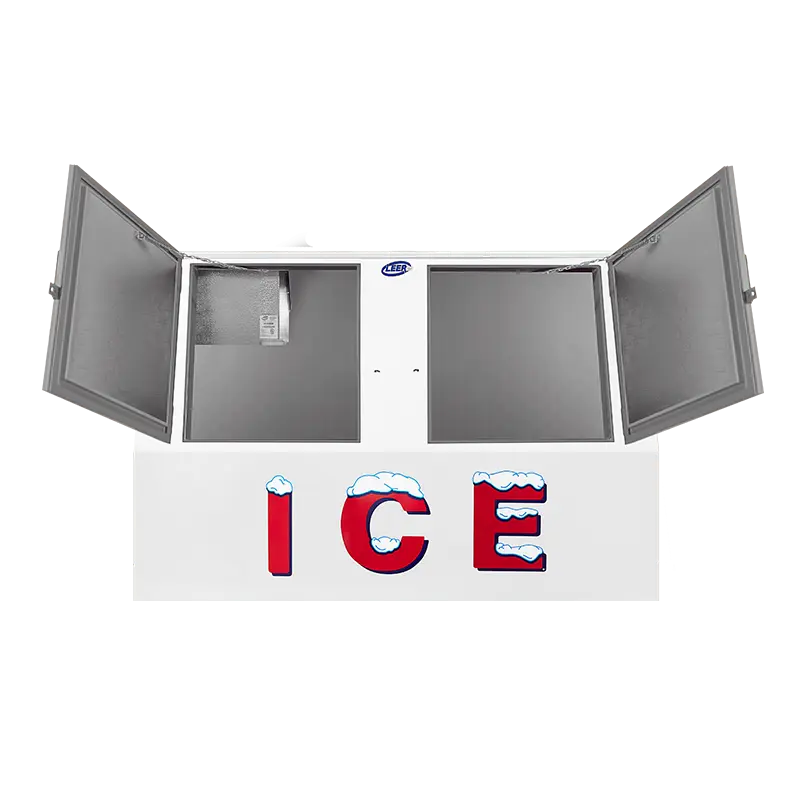

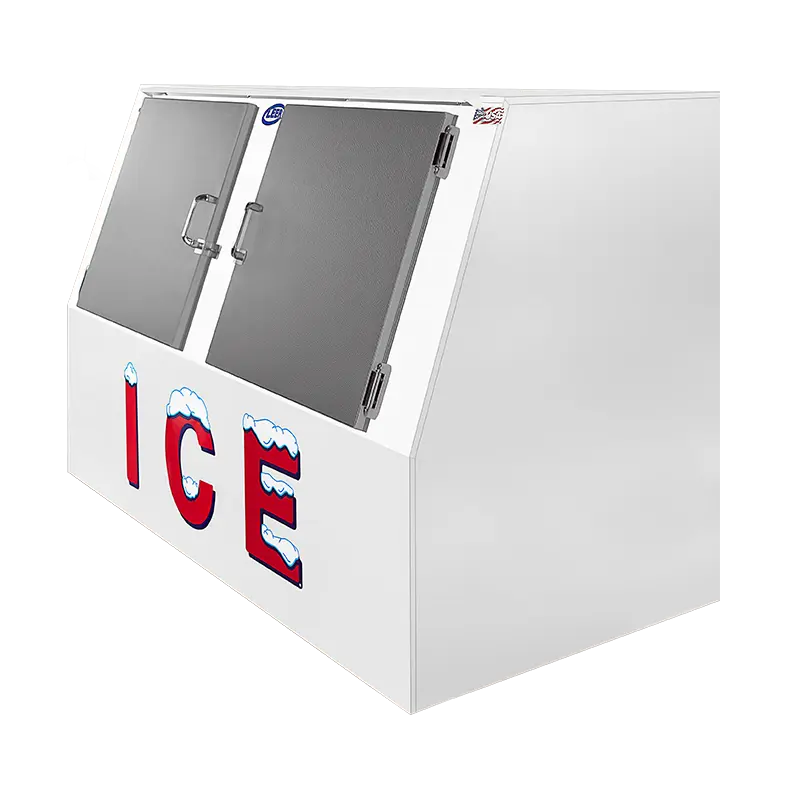

Outdoor Model 612 Low

Interior Capacity: 140 7 lb. Bags | 55 20 lb. Bags

Dimensions (W" x D" x H"): 73 x 35.5 x 49.5

A low-profile slant-front outdoor ice merchandiser built for reliable packaged ice storage with added capacity where height, visibility, and customer access matter.

Cooling Type

Clear

Add to quote

Models & Cooling Types

Cooling Types	Model Number
Auto Defrost	L462LASP
Cold Wall	L462LCSP

Dimensions & Capacity

Exterior Dimensions (WxDxH)

73 x 35.5 x 49.5

Interior Capacity

46 Cubic Feet

Door Opening (Wx H)

27 x 27

Bag Size	Auto Defrost	Cold Wall
7 lb. Bags	140	160
20 lb. Bags	55	60

Performance & Operation

Operating Temperature

16°F - 24°F

Refrigerant

R290

Compressor HP

1/3

Product Weight
Auto Defrost (lbs.)	455
Cold Wall (lbs.)	425

Electrical & Compliance

Standard Voltage (V/Hz)

115 / 60

Alternate Voltage

230V/50Hz (Available Upon Request)

Min. Circuit Required (Amps)

15 amps

Cooling Type	Amps
Auto Defrost	6.3
Cold Wall	6.3

Compliance & Certifications

DOE Compliant

Yes

CARB Compliant

Upon Request

NSF

Upon Request

Certifications

UL, cUL, CE

Outdoor Model 612 Low

Is this model right for me?

The Outdoor 612 Low is a strong fit when you need added outdoor packaged ice capacity in a low-profile cabinet. Its slant-front design helps keep packaged ice visible, approachable, and easy to retrieve, while the reduced height makes it useful for storefront areas where sightlines, access, or placement constraints matter.

Best For

Storefront layouts where a lower-profile merchandiser is preferred
Outdoor areas near windows, walkways, overhangs, or visibility-sensitive spaces
Locations where customers benefit from a lower, easier-to-reach access point
Businesses that need added outdoor packaged ice storage without a taller cabinet profile
Convenience stores, liquor stores, grocery stores, and specialty retail
Outdoor ice storage built with R290 refrigerant and long-term compliance in mind
