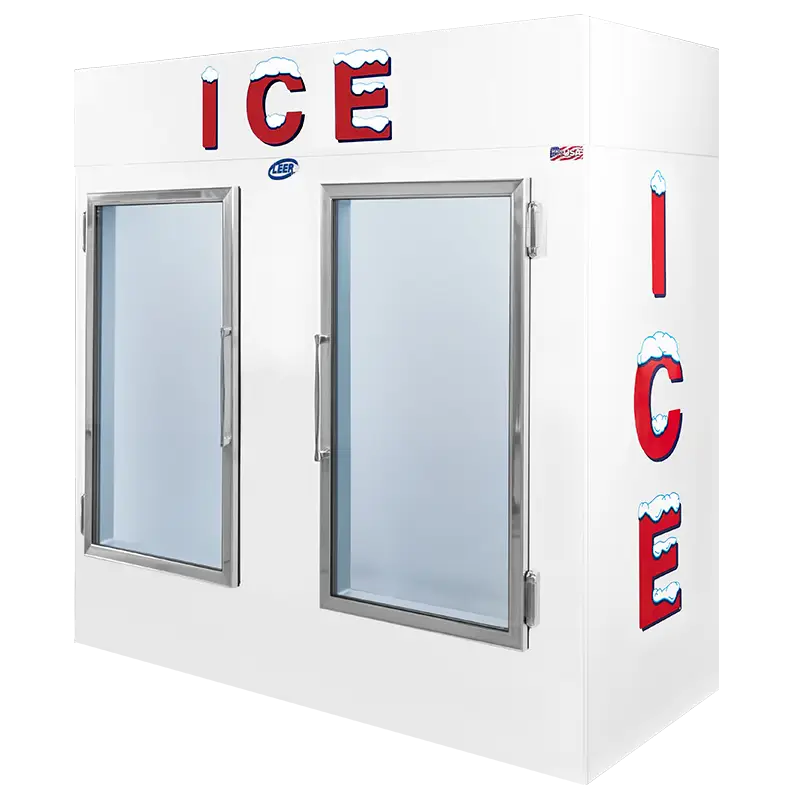

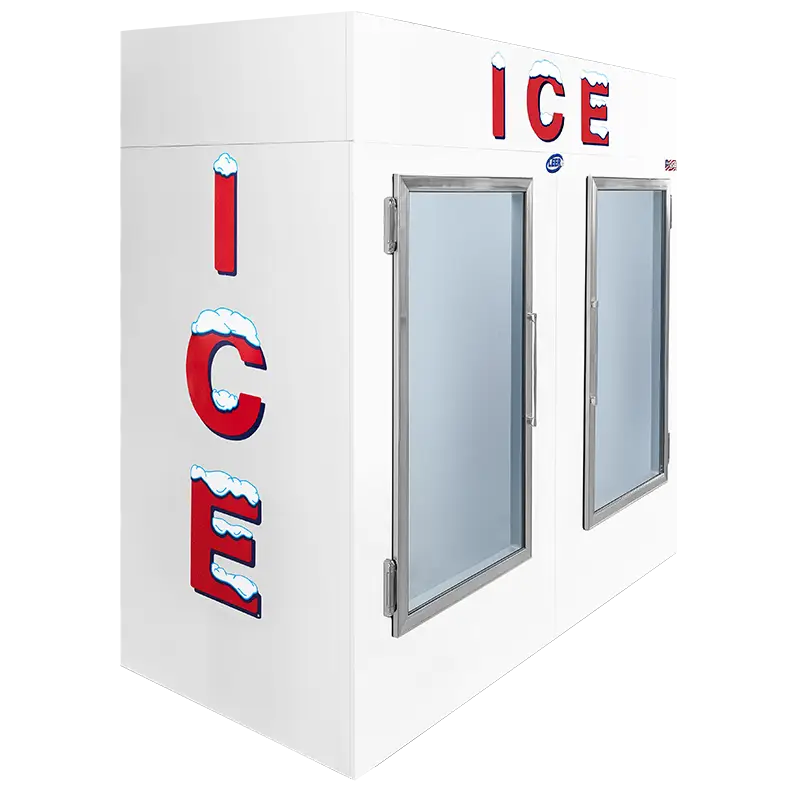

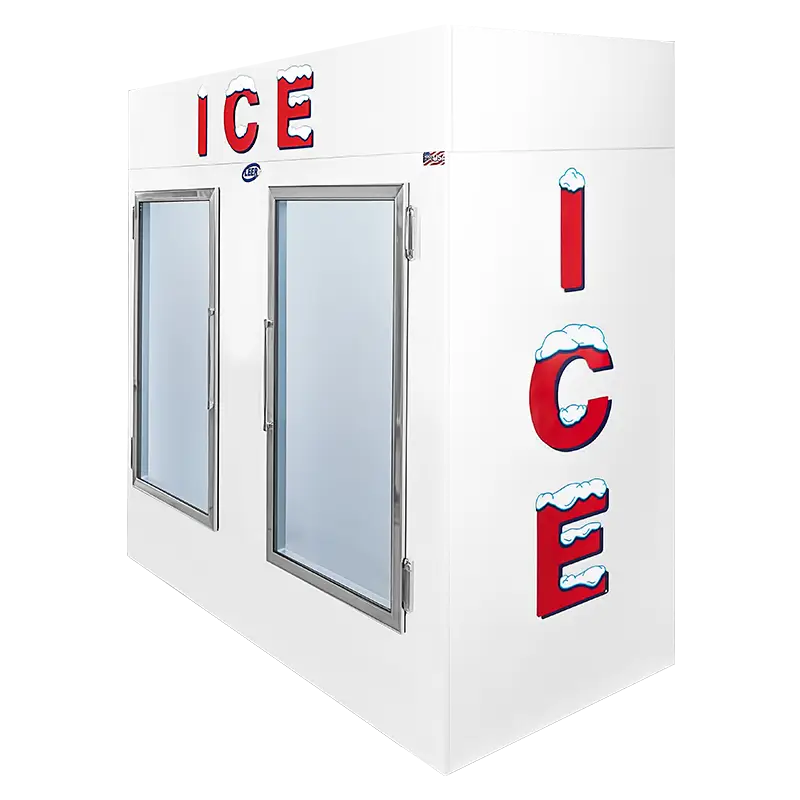

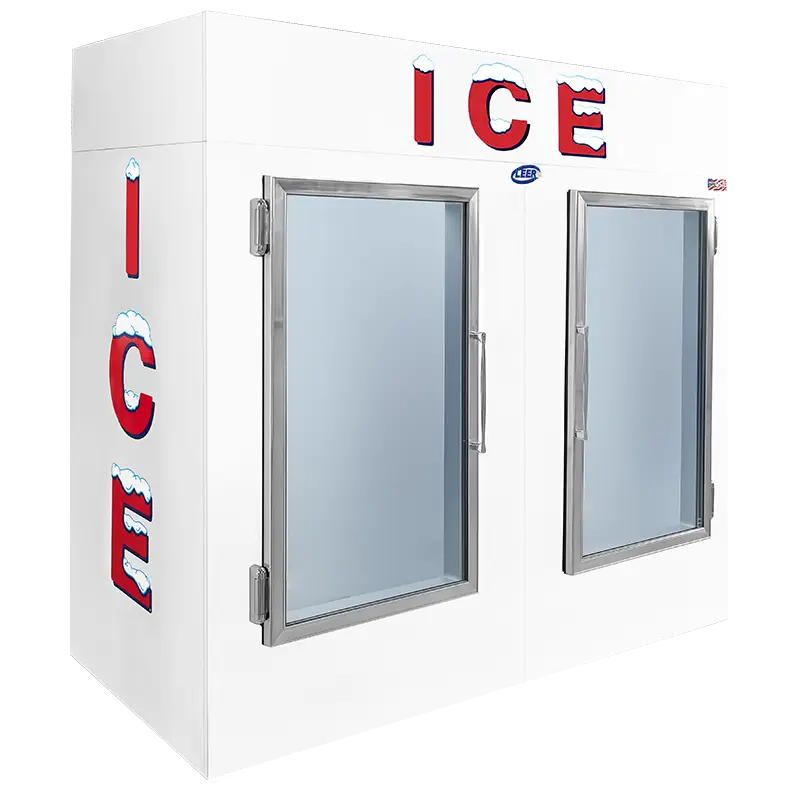

Indoor Ice Merchandisers

Model 85

Interior Capacity: 230 7 lb. Bags | 90 20 lb. Bags
Dimensions (W" x D" x H"): 84 x 35.5 x 76.5

A high-capacity indoor ice merchandiser built for reliable packaged ice storage in busier retail environments with stronger everyday demand.

Models & Cooling Types
Cooling Types
Model Number
Auto Defrost
L085UAGP
Cold Wall
L085UCGP
Exterior Dimensions (WxDxH)
84 x 35.5 x 76.5
Interior Capacity
85 Cubic Feet
Door Opening (Wx H)
28 x 47
Bag Size
Auto Defrost
Cold Wall
7 lb. Bags
230
260
20 lb. Bags
90
100
Operating Temperature
16°F - 24°F
Refrigerant
R290
Compressor HP
1/2
Product Weight
Auto Defrost (lbs.)
620
Cold Wall (lbs.)
590
Standard Voltage (V/Hz)
115 / 60
Alternate Voltage
230V/50Hz (Available Upon Request)
Min. Circuit Required (Amps)
15 amps
Cooling Type
Amps
Auto Defrost
10
Cold Wall
10
DOE Compliant
Yes
CARB Compliant
Yes
NSF
Available
Certifications
UL, cUL, CE

Model 85

Is this model right for me?

The Model 85 is a good fit when you need high-capacity indoor packaged ice storage and have dedicated space for a larger merchandising footprint. It works well for high-traffic retail environments, stronger everyday ice demand, or businesses that need more capacity and visibility than smaller indoor models can provide.

Best For

  • High-traffic indoor locations with strong packaged ice demand
  • Convenience stores, liquor stores, grocery stores, and retail environments with steady customer volume
  • Primary packaged ice merchandising with room for a larger footprint
  • Locations that need more capacity than the Model 75
  • Businesses that want a larger, more visible ice merchandising presence

Model 85

Videos

Learn more about Leer Indoor Ice Merchandisers construction, and cooling types.

From Factory Floor to the Front of the Store – How An Ice Merchandiser is Made!

Indoor Ice Merchandiser Overview

Model 85

Product Literature

Spec sheets, warranty information, certifications, and other documents to help review or specify this model.

Model 85

Support Documents

Maintenance guides, refrigerant information, troubleshooting resources, and other materials that support long-term operation.

Model 85

Drawings

View dimensional drawings for footprint, door opening, and placement planning.
