Leer Pallet Load Ice Merchandisers Allow You To...
How It Works
PL150
PL225
PALLET LOAD ICE MERCHANDISER LINEUP
2021 state refrigerant legislations have changed. Leer’s R290 Rollout Plans have been updated.
Previous
Next

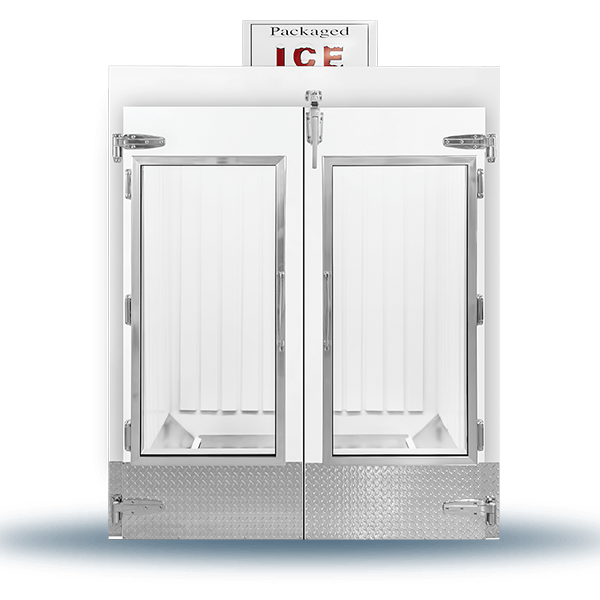

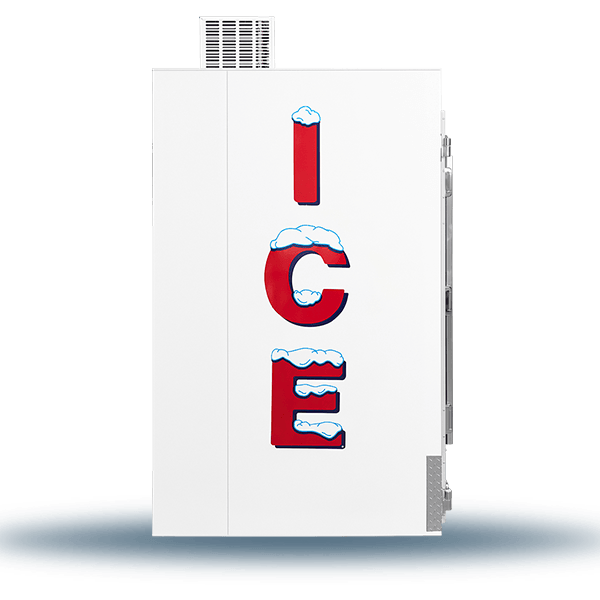

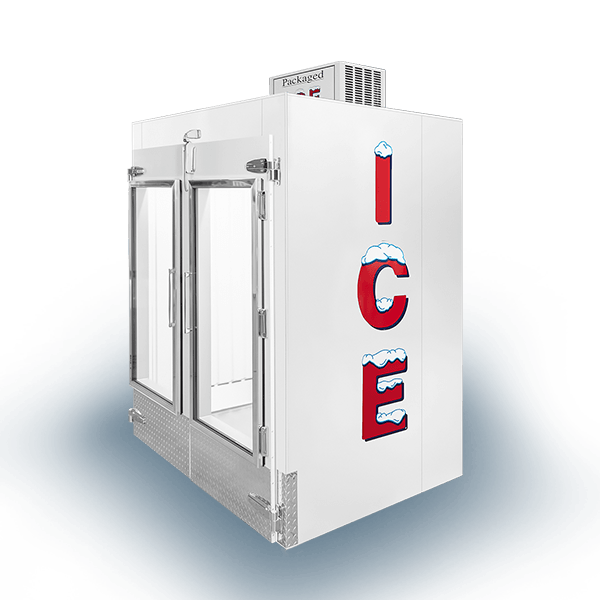

PL150
- AD
- R404a
- R290
Interior Capacity7:
260 7 lb. Bags | 100 20 lb. Bags
260 7 lb. Bags | 100 20 lb. Bags
Dimensions (W" x D" x H")1-6:
72 x 54 x 101
Additional Specifications
PL150
Standard Model Numbers
Auto Defrost – R404a:
L150UAGEPL
Auto Defrost – R290:
L150UAGPPL
Dimensions & Capacities
7 lb. Bags - Auto Defrost:
260
20 lb. Bags - Auto Defrost:
100
Approx. Interior Cubic Feet:
150
Dimensions (W”xD”xH”):
72 x 54 x 101
Door Size (W”x H”):
28 x 56
Loading Door Size (W”x H”):
64 x 75
Operating Temperature
(X°F - X°F):
16-24
R404a Control
Electronic
R290 Control
Electronic
Product Weight
Auto Defrost (lbs.):
1470
Electrical
Voltage (V/Hz):
115/60
Min. Circuit Required (Amps):
20
Auto Defrost (Amps):
13
230V/50Hz Available: Upon Request
Other
Compressor (HP):
3/4
Refrigerant:
Certifications:
UL, cUL
DOE Compliant: Yes
CARB Compliant:
R290 Units
NSF Not Available
- Height Includes Compressor
- Add 3″ to Depth for Condensate Evaporator Pan
- Add 3.5″ to Depth for Glass Door & Handle
- Merchandiser storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.
Previous
Next

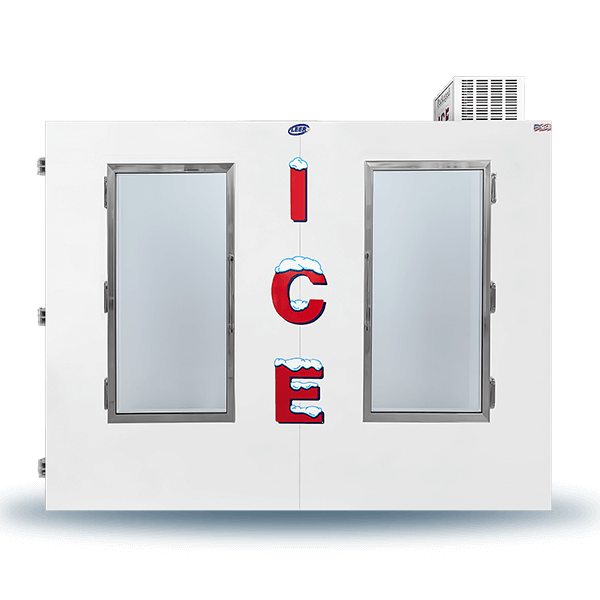

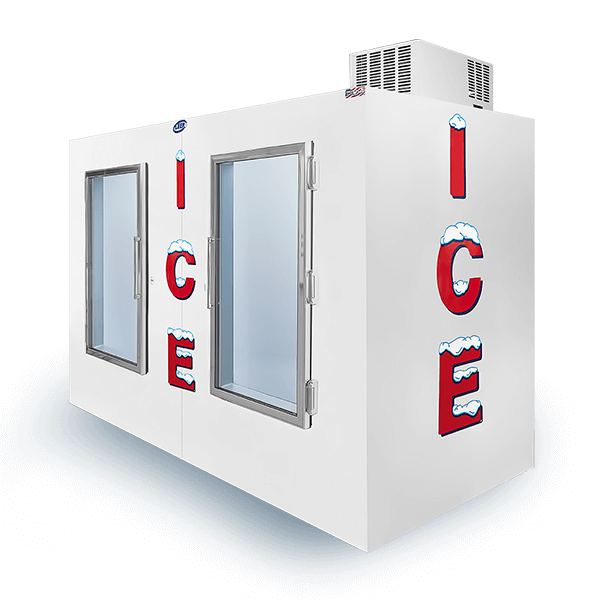

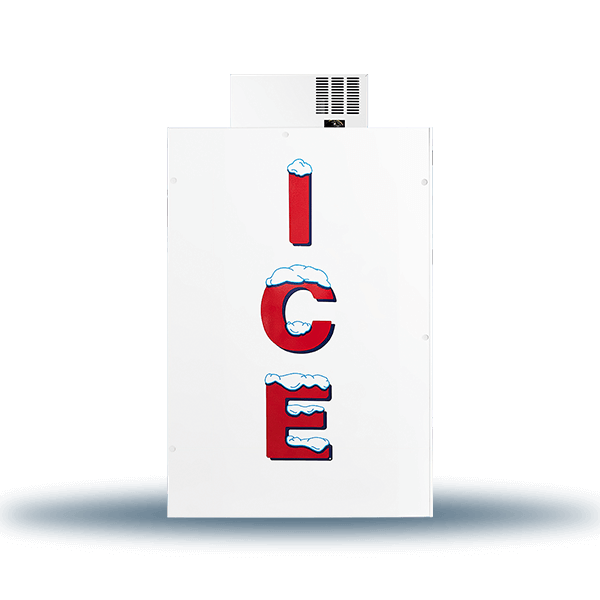

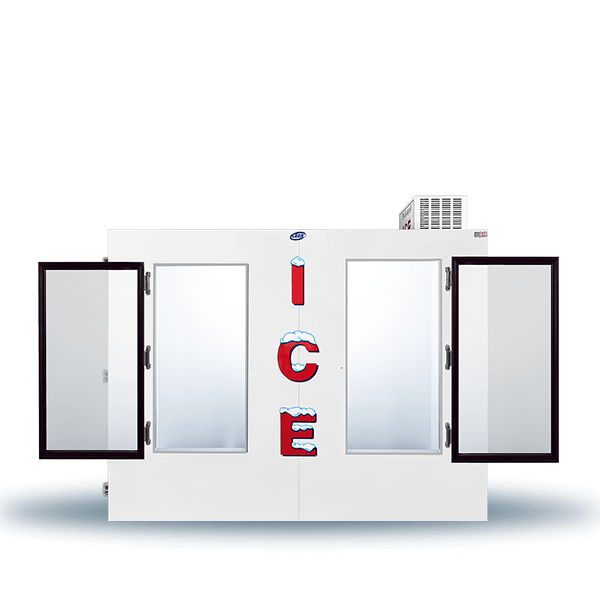

Indoor PL225
- AD
- R404a
- R290
Interior Capacity7:
520 7 lb. Bags | 200 20 lb. Bags
520 7 lb. Bags | 200 20 lb. Bags
Dimensions (W" x D" x H")1-6:
108 x 56 x 96.5
Additional Specifications
Indoor PL225
Standard Model Numbers
Auto Defrost – R404a:
L225UAGEPL
Auto Defrost – R290:
L225UAGPPL
Dimensions & Capacities
7 lb. Bags - Auto Defrost:
520
20 lb. Bags - Auto Defrost:
200
Approx. Interior Cubic Feet:
225
Dimensions (W”xD”xH”):
108 x 56 x 96.5
Door Size (W”x H”):
28 x 56
Loading Door Size (W”x H”):
45 x 75
Operating Temperature
(X°F - X°F):
16-24
R404a Control
Electronic
R290 Control
Electronic
Product Weight
Auto Defrost (lbs.):
1780
Electrical
Voltage (V/Hz):
115/60
Min. Circuit Required (Amps):
20
Auto Defrost (Amps):
13
230V/50Hz Available: Upon Request
Other
Compressor (HP):
3/4
Refrigerant:
Certifications:
UL, CUL
DOE Compliant: Yes
CARB Compliant:
R290 Units
NSF Not Available
- Height Includes Compressor
- Add 3″ to Depth for Condensate Evaporator Pan
- Add 3.5″ to Depth for Glass Door & Handle
- Merchandiser storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.
Previous
Next

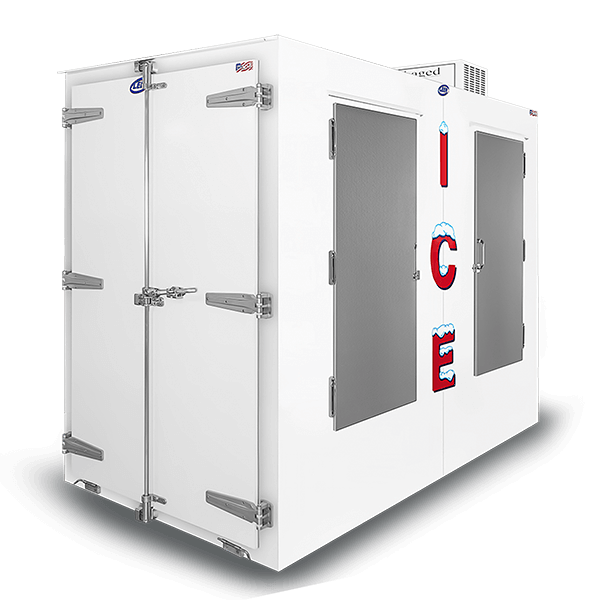

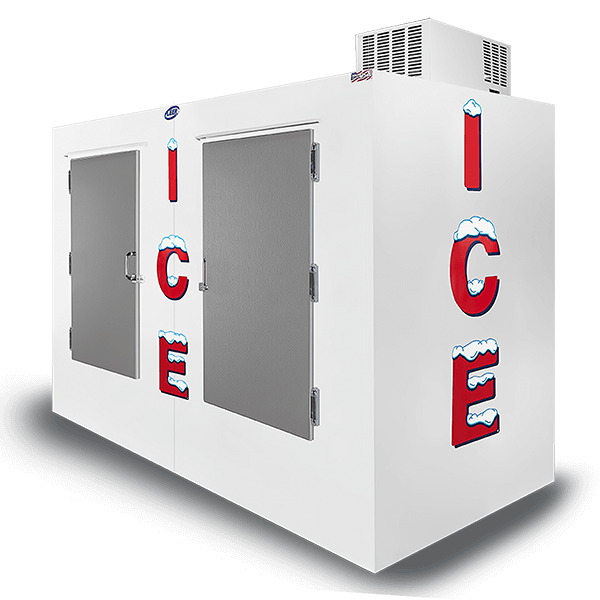

Outdoor PL225
- AD
- R404a
- R290
Interior Capacity7:
520 7 lb. Bags | 200 20 lb. Bags
520 7 lb. Bags | 200 20 lb. Bags
Dimensions (W" x D" x H")1-6:
108 x 56 x 96.5
Additional Specifications
Outdoor PL225
Standard Model Numbers
Auto Defrost – R404a:
L225UASEPL
Auto Defrost – R290:
L225UASPPL
Dimensions & Capacities
7 lb. Bags - Auto Defrost:
520
20 lb. Bags - Auto Defrost:
200
Approx. Interior Cubic Feet:
225
Dimensions (W”xD”xH”):
108 x 56 x 96.5
Door Size (W”x H”):
27 x 55
Loading Door Size (W”x H”):
45 x 75
Operating Temperature
(X°F - X°F):
16-24
R404a Control
Electronic
R290 Control
Electronic
Product Weight
Auto Defrost (lbs.):
1780
Electrical
Voltage (V/Hz):
115/60
Min. Circuit Required (Amps):
20
Auto Defrost (Amps):
13
230V/50Hz Available: Upon Request
Other
Compressor (HP):
3/4
Refrigerant:
Certifications:
UL, CUL
DOE Compliant: Yes
CARB Compliant:
R290 Units
NSF Not Available
- Add 3″ to Depth for Upright Solid Door & Handle
- Merchandiser storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.
MORE COMFORTABLE WITH CLASSIC MERCHANDISERS?

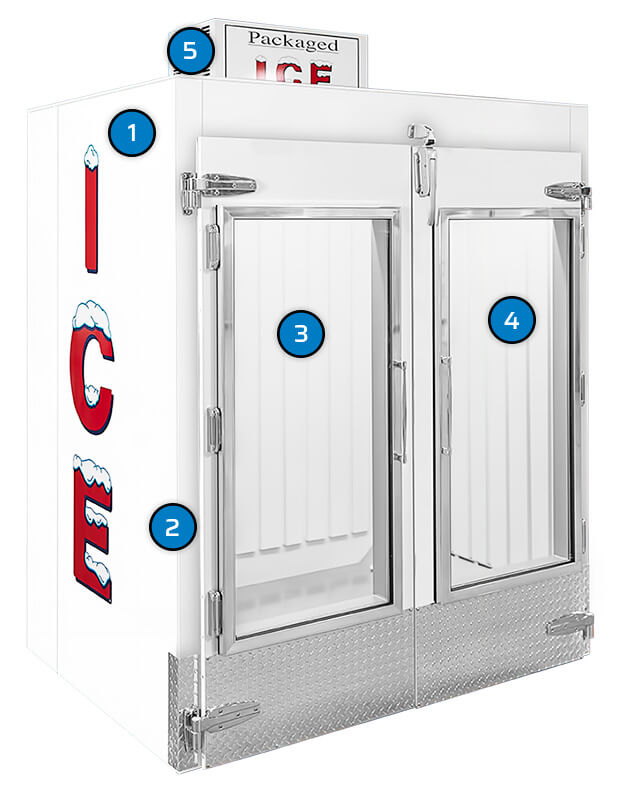

PL150 Construction Features
Click on a number to learn more about each product feature.
Leer Inc.
- Your Partner in Temperature-Controlled Storage Solutions
- With over 65 years of industry expertise, innovation and focus on manufacturing excellence, we're confident our products feature industry leading efficiency, reliability, durability and longevity - delivering an unbeatable value to you and your company.
- Made in Wisconsin, USA
- Manufactured under a strict quality control program to ensure our products are delivered right the first time, right every time.
- Iconic Red Snow-Capped ICE Decals
- The trademarked ICE decals are a staple of the Packaged Ice Industry and Leer’s unique signature that you can’t get anywhere else.
- We're With You Every Degree of the Way
- As an employee owned company, our success depends on your success. We stand behind our products and are dedicated to your success by providing free lifetime technical support. Our engineers and customer service teams are available to help, whether you're a potential new customer or a lifetime customer of Leer.
Construction Features
- Patented Construction Features
- All steel construction with no fasteners, welding, or adhesives. The offset seams are precision machine formed, resulting in water-tight lock-form seams that create a stronger and more durable merchandiser. This increases longevity by reducing moisture penetration into the insulation.
- Patented Removable Floor
- Insulated removable floor designed to easily transfer full pallets of ice in and out of the merchandiser via a pallet jack.
- High R-Values
- Increased insulation to reduce heat infiltration into the unit - resulting in consistent and optimal temperatures of 16°F - 24°F. There’s 3" of high-performance, eco-friendly, insulation in the ceiling and walls.
- Rust Resistant
- The exterior of the merchandiser is finished with a two-part primer/top coat all-weather paint to provide superior resistance to humidity, corrosion, and other weather conditions.
- Protective Tread Plate
- Standard with diamond tread plate to protect the merchandiser from dents and damage from customers and shopping carts.
- Large Interior Capacity
- Interior capacity large enough to fit a full pallet of ice, while still on the pallet.
Door Features
- High-Impact Breaker Strip
- High-impact breaker strip, located around the perimeter of the door jamb, durable enough to withstand excessive wear and tear and provide a thermal break between the merchandiser interior and exterior.
- Aluminum Door Frame
- The glass is encased in a long-lasting, durable, light-weight, aluminum frame.
- Insulated Tempered Glass
- The doors contain argon-filled insulated tempered glass. The argon insulation decreases the merchandisers' U-Value, which is essentially the amount of solar heat transfer the glass allows into the unit.
- Spring-Assisted Hinges
- The hinges are adjustable to ensure a lifetime of level, and solid sealing doors. Additionally, the springs help the door close securely and avoid accidentally being left open.
- Chrome-Finish Hardware
- All hardware, including hinges and handles, have a chrome-finish to provide greater, strength durability, resistance to corrosion, and aesthetics.
- Large Door Openings
- Oversized door openings for increased view and accessibility of the ice.

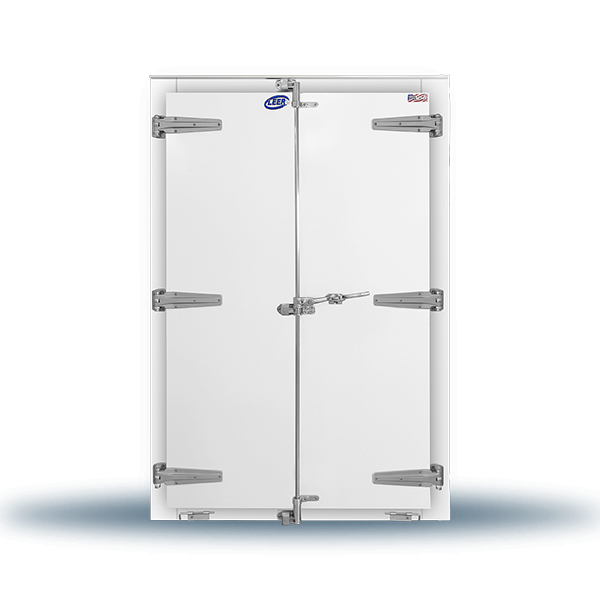

- Oversized Transport-Style Doors
- Oversized transport-style doors large enough for a full pallet of ice to be loaded into the merchandiser via a pallet jack, in just minutes.
Refrigeration Features
- Serviceability
- Drop-in refrigeration system and drop-down evaporator allow for easier troubleshooting, maintenance, and servicing.
- Compressor Cover
- Standard and provides air flow for better cooling of the condenser and compressor. It's also a layer of protection from harmful foreign objects.
- Intelligent Electronic Controls
- Electronic controls feature a digital display, factory preset advanced custom settings, and built-in intelligence to ensure your merchandiser will consistently operate at the optimal settings for your environmental needs.
Interior Features
- High-End Interior Finish
- Bright white interior finish.
- Interior Lighting
- Standard with energy efficient LED lighting to help showcase the ice.
PL225 Construction Features
Click on a number to learn more about each product feature.
Leer Inc.
- Your Partner in Temperature-Controlled Storage Solutions
- With over 65 years of industry expertise, innovation and focus on manufacturing excellence, we're confident our products feature industry leading efficiency, reliability, durability and longevity - delivering an unbeatable value to you and your company.
- Made in Wisconsin, USA
- Manufactured under a strict quality control program to ensure our products are delivered right the first time, right every time.
- Iconic Red Snow-Capped ICE Decals
- The trademarked ICE decals are a staple of the Packaged Ice Industry and Leer’s unique signature that you can’t get anywhere else.
- We're With You Every Degree of the Way
- As an employee owned company, our success depends on your success. We stand behind our products and are dedicated to your success by providing free lifetime technical support. Our engineers and customer service teams are available to help, whether you're a potential new customer or a lifetime customer of Leer.
Construction Features

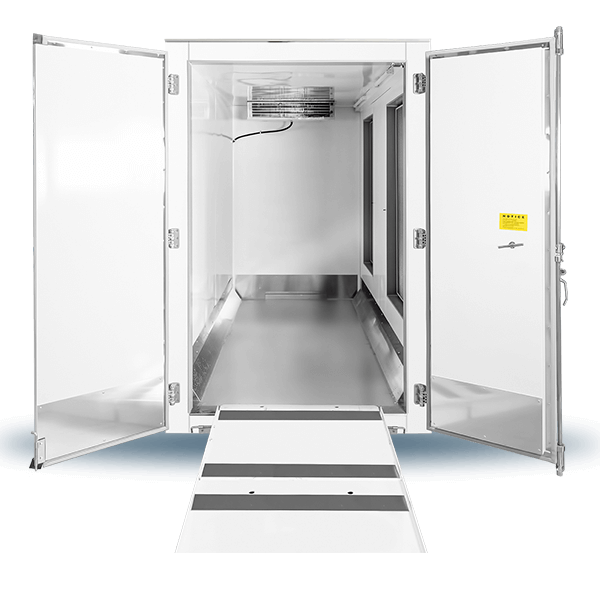

- Removable Ramp
- Four-piece ramp is fully removeable to optimize space when the merchandiser is not being loaded.
- High R-Values
- Increased insulation to reduce heat infiltration into the unit - resulting in consistent and optimal temperatures of 16°F - 24°F. There’s 3" of high-performance, eco-friendly, insulation in the ceiling and walls, and 4” of insulation in the floor.
- Rust Resistant
- The exterior of the merchandiser is finished with a two-part primer/top coat all-weather paint to provide superior resistance to humidity, corrosion, and other weather conditions.
- Protective Tread Plate
- Standard with diamond tread plate to protect the merchandiser from dents and damage from the pallets.
- Large Interior Capacity
- Interior capacity large enough to fit two full pallets of ice, while still on the pallets.
Door Features
- High-Impact Breaker Strip
- High-impact breaker strip, located around the perimeter of the door jamb, durable enough to withstand excessive wear and tear and provide a thermal break between the merchandiser interior and exterior.
- Aluminum Door Frame
- The glass is encased in a long-lasting, durable, light-weight, aluminum frame.
- Insulated Tempered Glass
- The doors contain argon-filled insulated tempered glass. The argon insulation decreases the merchandisers' U-Value, which is essentially the amount of solar heat transfer the glass allows into the unit.
- Spring-Assisted Hinges
- The hinges are adjustable to ensure a lifetime of level, and solid sealing doors. Additionally, the springs help the door close securely and avoid accidently being left open.
- Stainless Steel/Chrome-Finish Hardware
- All hardware, including hinges and handles, are powder coated, stainless steel or have a chrome-finish to provide greater strength durability, resistance to corrosion, and high-end look.
- Large Door Openings
- Oversized door openings for increased view and accessibility of the ice, and ease of merchandising during restock.
- Oversized Transport-Style Doors
- Oversized transport-style doors large enough for a full pallet of ice to be loaded into the merchandiser via a pallet jack, in just minutes.
Refrigeration Features
- Serviceability
- The drop-down evaporator allows for easier troubleshooting, maintenance, and servicing.
- Compressor Cover
- Standard and provides air flow for better cooling of the condenser and compressor. It's also a layer of protection from harmful foreign objects.
- Intelligent Electronic Controls
- Electronic controls feature a digital display, factory preset advanced custom settings, and built-in intelligence to ensure your merchandiser will consistently operate at the optimal settings for your environmental needs.
Interior Features
- High-End Interior Finish
- Bright white interior finish.
- Pallet Guides and Stops
- Pallet guides and stops are included to help navigate the pallets of ice into the correct location.
- Reinforced Steel Floor
- Beneath the standard steel floor is 3/4" plywood reinforcement to provide greater durability when rolling several tons of ice in the merchandiser.
- Interior Lighting
- Standard with energy efficient LED lighting to help showcase the ice.
