Leer Indoor Ice Merchandisers
The iconic snow-capped ice decals you've seen everywhere
Grocery Stores, Convenience Stores, Movies...its Leer!
Model 30
- AD
- CW
- R290
Interior Capacity7:
80 7 lb. Bags | 30 20 lb. Bags
80 7 lb. Bags | 30 20 lb. Bags
Dimensions (W" x D" x H")1-6:
36 x 30 x 76.5
Additional Specifications
Model 30
Standard Model Numbers
Auto Defrost – R290:
L030UAGP
Cold Wall – R290:
L030UCGP
Dimensions & Capacities
7 lb. Bags - Auto Defrost:
80
20 lb. Bags - Auto Defrost:
30
7 lb. Bags - Cold Wall:
80
20 lb. Bags - Cold Wall:
30
Approx. Interior Cubic Feet:
30
Dimensions (W”xD”xH”):
36 x 30 x 76.5
Door Size (W”x H”):
28 x 47
Operating Temperature
(X°F - X°F):
16 -24
Control:
Electronic Control
Product Weight
Auto Defrost (lbs.):
345
Cold Wall (lbs.):
330
Electrical
Voltage (V/Hz):
115 / 60
Min. Circuit Required (Amps):
15
Auto Defrost (Amps):
6.3
Cold Wall (Amps):
6.3
230V/50Hz Available: Upon Request
Other
Compressor (HP):
1/3
Refrigerant:
Certifications:
UL, cUL, CE
DOE Compliant: Yes
CARB Compliant:
Upon Request
NSF Available: Upon Request
- Height Includes Compressor
- Add 3″ to Depth for Condensate Evaporator Pan
- Add 3″ to Depth for Low Profile Raceway
- Add 3.5″ to Depth for Glass Door & Handle
- Add 3″ to Depth for Upright Solid Door & Handle
- Add 1″ to Depth for Slant Solid Door & Handle
- Merchandiser storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.

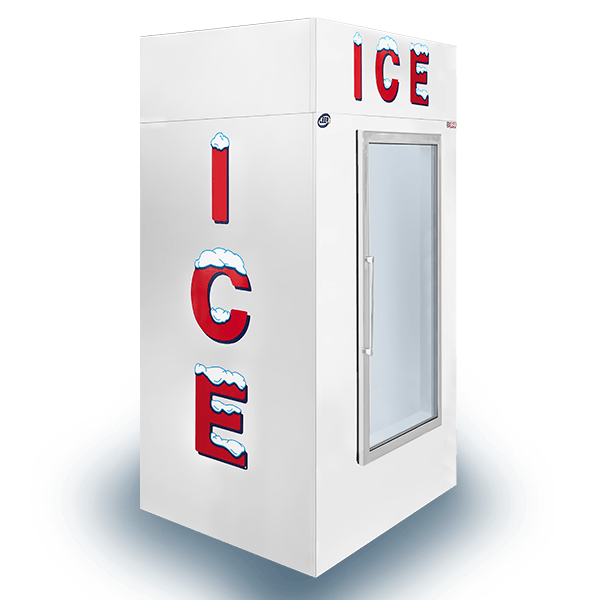

Model 40
- AD
- CW
- R290
Interior Capacity7:
120 7 lb. Bags | 45 20 lb. Bags
120 7 lb. Bags | 45 20 lb. Bags
Dimensions (W" x D" x H")1-6:
50.5 x 30 x 76.5
Additional Specifications
Model 40
Standard Model Numbers
Auto Defrost – R290:
L040UAGP
Cold Wall – R290:
L040UCGP
Dimensions & Capacities
7 lb. Bags - Auto Defrost:
120
20 lb. Bags - Auto Defrost:
45
7 lb. Bags - Cold Wall:
130
20 lb. Bags - Cold Wall:
50
Approx. Interior Cubic Feet:
40
Dimensions (W”xD”xH”):
50.5 x 30 x 76.5
Door Size (W”x H”):
28 x 47
Operating Temperature
(X°F - X°F):
16-24
Control:
Electronic Control
Product Weight
Auto Defrost (lbs.):
405
Cold Wall (lbs.):
370
Electrical
Voltage (V/Hz):
115 / 60
Min. Circuit Required (Amps):
15
Auto Defrost (Amps):
6.3
Cold Wall (Amps):
6.3
230V/50Hz Available: Upon Request
Other
Compressor (HP):
1/3
Refrigerant:
Certifications:
UL, cUL, CE
DOE Compliant: Yes
CARB Compliant:
Upon Request
NSF Available: Upon Request
- Height Includes Compressor
- Add 3″ to Depth for Condensate Evaporator Pan
- Add 3″ to Depth for Low Profile Raceway
- Add 3.5″ to Depth for Glass Door & Handle
- Add 3″ to Depth for Upright Solid Door & Handle
- Add 1″ to Depth for Slant Solid Door & Handle
- Merchandiser storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.
Model 60
- AD
- CW
- R290
Interior Capacity7:
180 7 lb. Bags | 70 20 lb. Bags
180 7 lb. Bags | 70 20 lb. Bags
Dimensions (W" x D" x H")1-6:
73 x 30 x 76.5
Additional Specifications
Model 60
Standard Model Numbers
Auto Defrost – R290:
L060UAGP
Cold Wall – R290:
L060UCGP
Dimensions & Capacities
7 lb. Bags - Auto Defrost:
180
20 lb. Bags - Auto Defrost:
70
7 lb. Bags - Cold Wall:
200
20 lb. Bags - Cold Wall:
80
Approx. Interior Cubic Feet:
60
Dimensions (W”xD”xH”):
73 x 30 x 76.5
Door Size (W”x H”):
28 x 47
Operating Temperature
(X°F - X°F):
16 -24
Control:
Electronic Control
Product Weight
Auto Defrost (lbs.):
545
Cold Wall (lbs.):
510
Electrical
Voltage (V/Hz):
115 / 60
Min. Circuit Required (Amps):
15
Auto Defrost (Amps):
10
Cold Wall (Amps):
10
230V/50Hz Available: Upon Request
Other
Compressor (HP):
1/2
Refrigerant:
Certifications:
UL, cUL, CE
DOE Compliant: Yes
CARB Compliant:
Upon Request
NSF Available: Upon Request
- Height Includes Compressor
- Add 3″ to Depth for Condensate Evaporator Pan
- Add 3″ to Depth for Low Profile Raceway
- Add 3.5″ to Depth for Glass Door & Handle
- Add 3″ to Depth for Upright Solid Door & Handle
- Add 1″ to Depth for Slant Solid Door & Handle
- Merchandiser storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.
Model 64
- AD
- CW
- R290
Interior Capacity7:
170 7 lb. Bags | 65 20 lb. Bags
170 7 lb. Bags | 65 20 lb. Bags
Dimensions (W" x D" x H")1-6:
64 x 35.5 x 76.5
Additional Specifications
Model 64
Standard Model Numbers
Auto Defrost – R290:
L064UAGP
Cold Wall – R290:
L064UCGP
Dimensions & Capacities
7 lb. Bags - Auto Defrost:
170
20 lb. Bags - Auto Defrost:
65
7 lb. Bags - Cold Wall:
190
20 lb. Bags - Cold Wall:
70
Approx. Interior Cubic Feet:
65
Dimensions (W”xD”xH”):
64 x 35.5 x 76.5
Door Size (W”x H”):
28 x 47
Operating Temperature
(X°F - X°F):
16 -24
Control:
Electronic Control
Product Weight
Auto Defrost (lbs.):
490
Cold Wall (lbs.):
455
Electrical
Voltage (V/Hz):
115 / 60
Min. Circuit Required (Amps):
15
Auto Defrost (Amps):
10
Cold Wall (Amps):
10
230V/50Hz Available: Upon Request
Other
Compressor (HP):
1/2
Refrigerant:
Certifications:
UL, cUL, CE
DOE Compliant: Yes
CARB Compliant:
Upon Request
NSF Available: Upon Request
- Height Includes Compressor
- Add 3″ to Depth for Condensate Evaporator Pan
- Add 3″ to Depth for Low Profile Raceway
- Add 3.5″ to Depth for Glass Door & Handle
- Add 3″ to Depth for Upright Solid Door & Handle
- Add 1″ to Depth for Slant Solid Door & Handle
- Merchandiser storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.
Model 65
- AD
- CW
- R290
Interior Capacity7:
170 7 lb. Bags | 65 20 lb. Bags
170 7 lb. Bags | 65 20 lb. Bags
Dimensions (W" x D" x H")1-6:
64 x 35.5 x 76.5
Additional Specifications
Model 65
Standard Model Numbers
Auto Defrost – R290:
L065UAGP
Cold Wall – R290:
L065UCGP
Dimensions & Capacities
7 lb. Bags - Auto Defrost:
170
20 lb. Bags - Auto Defrost:
65
7 lb. Bags - Cold Wall:
190
20 lb. Bags - Cold Wall:
70
Approx. Interior Cubic Feet:
65
Dimensions (W”xD”xH”):
64 x 35.5 x 76.5
Door Size (W”x H”):
28 x 47
Operating Temperature
(X°F - X°F):
16 -24
Control:
Electronic Control
Product Weight
Auto Defrost (lbs.):
490
Cold Wall (lbs.):
455
Electrical
Voltage (V/Hz):
115 / 60
Min. Circuit Required (Amps):
15
Auto Defrost (Amps):
6.3
Cold Wall (Amps):
6.3
230V/50Hz Available: Upon Request
Other
Compressor (HP):
1/3
Refrigerant:
Certifications:
UL, cUL, CE
DOE Compliant: Yes
CARB Compliant:
Upon Request
NSF Available: Upon Request
- Height Includes Compressor
- Add 3″ to Depth for Condensate Evaporator Pan
- Add 3″ to Depth for Low Profile Raceway
- Add 3.5″ to Depth for Glass Door & Handle
- Add 3″ to Depth for Upright Solid Door & Handle
- Add 1″ to Depth for Slant Solid Door & Handle
- Merchandiser storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.

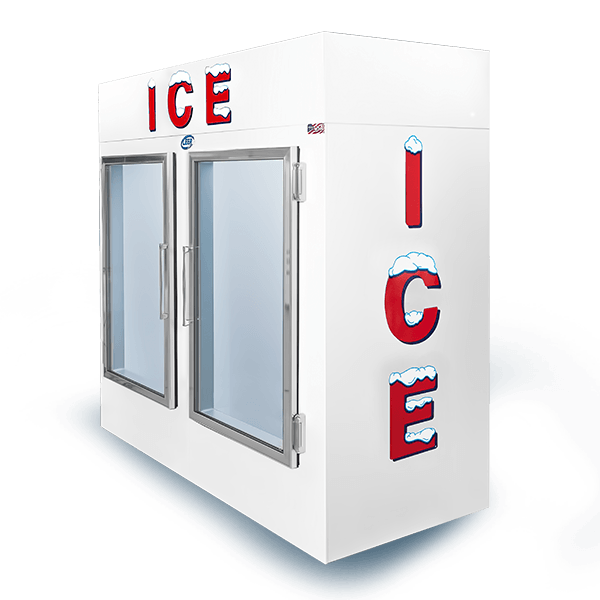

Model 75
- AD
- CW
- R290
Interior Capacity7:
210 7 lb. Bags | 80 20 lb. Bags
210 7 lb. Bags | 80 20 lb. Bags
Dimensions (W" x D" x H")1-6:
73 x 35.5 x 76.5
Additional Specifications
Model 75
Standard Model Numbers
Auto Defrost – R290:
L075UAGP
Cold Wall – R290:
L075UCGP
Dimensions & Capacities
7 lb. Bags - Auto Defrost:
210
20 lb. Bags - Auto Defrost:
80
7 lb. Bags - Cold Wall:
230
20 lb. Bags - Cold Wall:
90
Approx. Interior Cubic Feet:
75
Dimensions (W”xD”xH”):
73 x 35.5 x 76.5
Door Size (W”x H”):
28 x 47
Operating Temperature
(X°F - X°F):
16 -24
Control:
Electronic Control
Product Weight
Auto Defrost (lbs.):
585
Cold Wall (lbs.):
550
Electrical
Voltage (V/Hz):
115 / 60
Min. Circuit Required (Amps):
15
Auto Defrost (Amps):
10
Cold Wall (Amps):
10
230V/50Hz Available: Upon Request
Other
Compressor (HP):
1/2
Refrigerant:
Certifications:
UL, cUL, CE
DOE Compliant: Yes
CARB Compliant:
Upon Request
NSF Available: Upon Request
- Height Includes Compressor
- Add 3″ to Depth for Condensate Evaporator Pan
- Add 3″ to Depth for Low Profile Raceway
- Add 3.5″ to Depth for Glass Door & Handle
- Add 3″ to Depth for Upright Solid Door & Handle
- Add 1″ to Depth for Slant Solid Door & Handle
- Merchandiser storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.

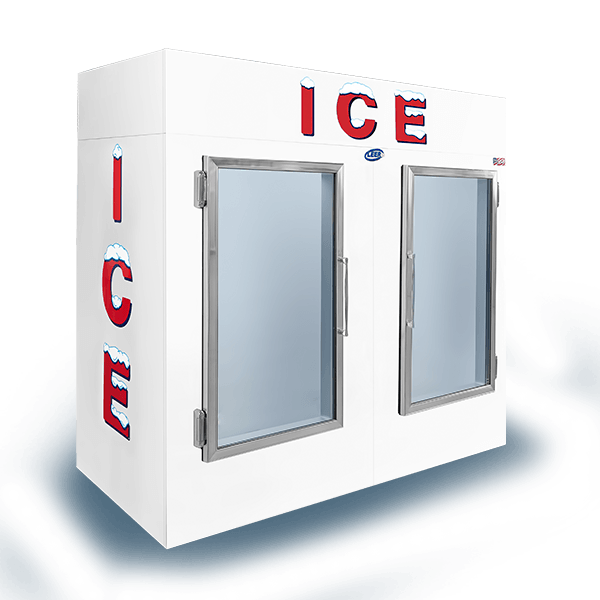

Model 85
- AD
- CW
- R290
Interior Capacity7:
230 7 lb. Bags | 90 20 lb. Bags
230 7 lb. Bags | 90 20 lb. Bags
Dimensions (W" x D" x H")1-6:
84 x 35.5 x 76.5
Additional Specifications
Model 85
Standard Model Numbers
Auto Defrost – R290:
L085UAGP
Cold Wall – R290:
L085UCGP
Dimensions & Capacities
7 lb. Bags - Auto Defrost:
230
20 lb. Bags - Auto Defrost:
90
7 lb. Bags - Cold Wall:
260
20 lb. Bags - Cold Wall:
100
Approx. Interior Cubic Feet:
85
Dimensions (W”xD”xH”):
84 x 35.5 x 76.5
Door Size (W”x H”):
28 x 47
Operating Temperature
(X°F - X°F):
16 -24
Control:
Electronic Control
Product Weight
Auto Defrost (lbs.):
620
Cold Wall (lbs.):
590
Electrical
Voltage (V/Hz):
115 / 60
Min. Circuit Required (Amps):
15
Auto Defrost (Amps):
10
Cold Wall (Amps):
10
230V/50Hz Available: Upon Request
Other
Compressor (HP):
1/2
Refrigerant:
Certifications:
UL, cUL, CE
DOE Compliant: Yes
CARB Compliant:
Upon Request
NSF Available: Upon Request
- Height Includes Compressor
- Add 3″ to Depth for Condensate Evaporator Pan
- Add 3″ to Depth for Low Profile Raceway
- Add 3.5″ to Depth for Glass Door & Handle
- Add 3″ to Depth for Upright Solid Door & Handle
- Add 1″ to Depth for Slant Solid Door & Handle
- Merchandiser storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.

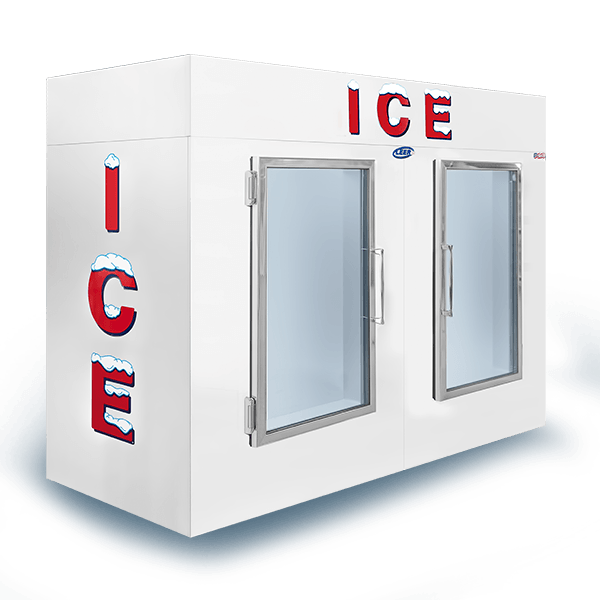

Model 100
- AD
- CW
- R290
Interior Capacity7:
260 7 lb. Bags | 100 20 lb. Bags
260 7 lb. Bags | 100 20 lb. Bags
Dimensions (W" x D" x H")1-6:
94 x 35.5 x 76.5
Additional Specifications
Model 100
Standard Model Numbers
Auto Defrost – R290:
L100UAGP
Cold Wall – R290:
L100UCGP
Dimensions & Capacities
7 lb. Bags - Auto Defrost:
260
20 lb. Bags - Auto Defrost:
100
7 lb. Bags - Cold Wall:
290
20 lb. Bags - Cold Wall:
110
Approx. Interior Cubic Feet:
100
Dimensions (W”xD”xH”):
94 x 35.5 x 76.5
Door Size (W”x H”):
28 x 47
Operating Temperature
(X°F - X°F):
16 -24
Control:
Electronic Control
Product Weight
Auto Defrost (lbs.):
655
Cold Wall (lbs.):
605
Electrical
Voltage (V/Hz):
115 / 60
Min. Circuit Required (Amps):
15
Auto Defrost (Amps):
10
Cold Wall (Amps):
10
230V/50Hz Available: Upon Request
Other
Compressor (HP):
1/2
Refrigerant:
Certifications:
UL, cUL, CE
DOE Compliant: Yes
CARB Compliant:
Upon Request
NSF Available: Upon Request
- Height Includes Compressor
- Add 3″ to Depth for Condensate Evaporator Pan
- Add 3″ to Depth for Low Profile Raceway
- Add 3.5″ to Depth for Glass Door & Handle
- Add 3″ to Depth for Upright Solid Door & Handle
- Add 1″ to Depth for Slant Solid Door & Handle
- Merchandiser storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.

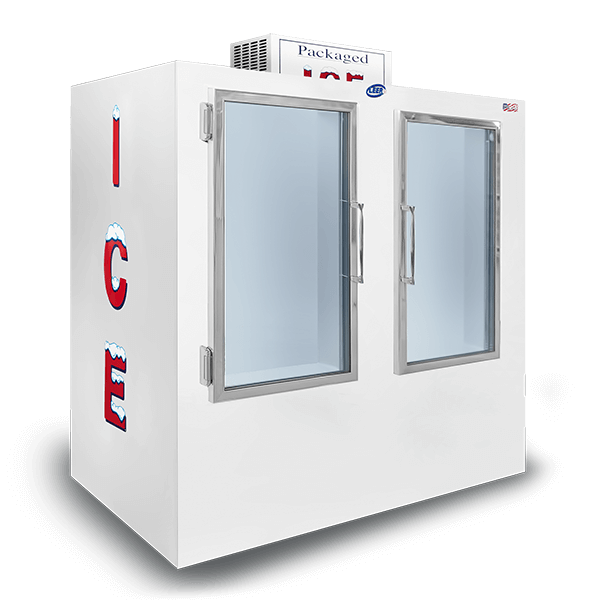

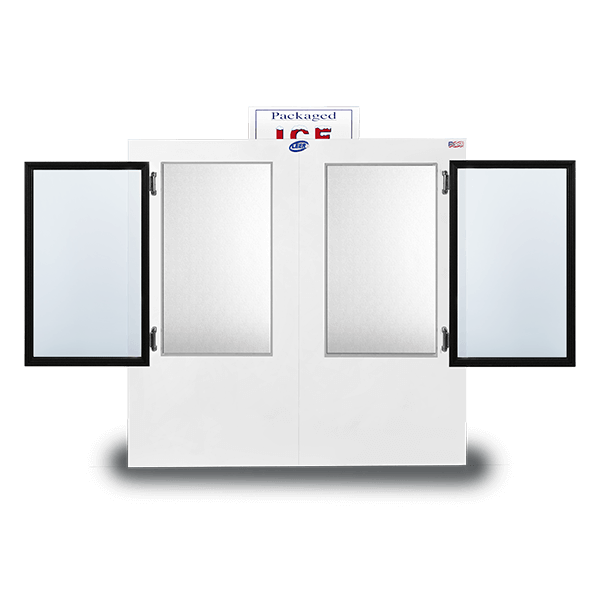

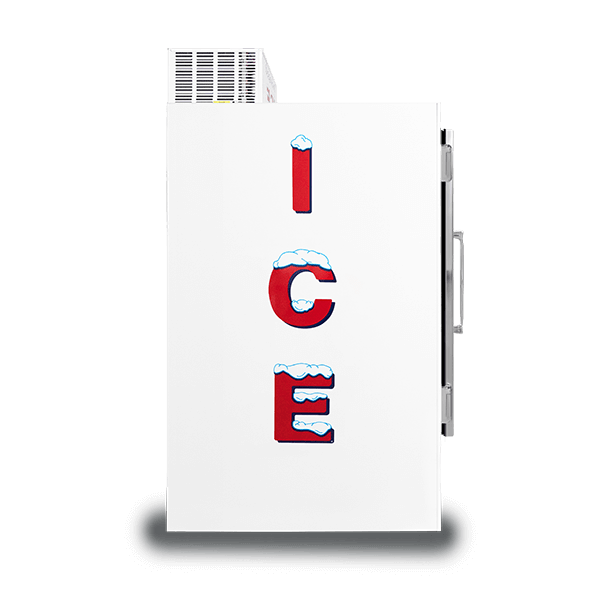

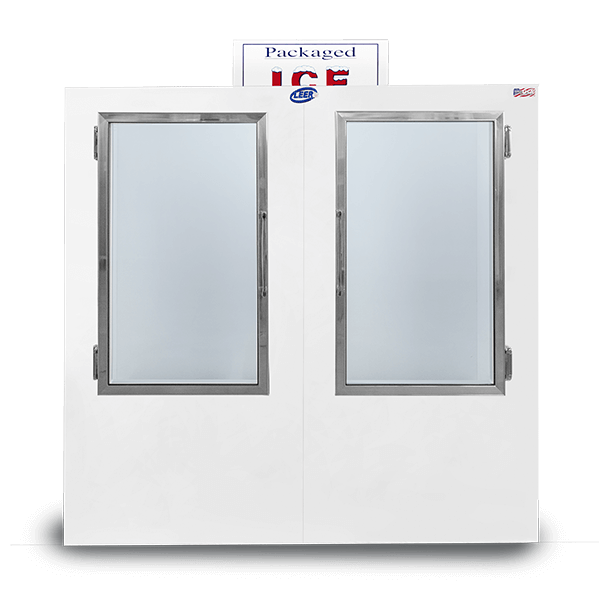

Model 120
- AD
- R290
Interior Capacity7:
310 7 lb. Bags | 120 20 lb. Bags
310 7 lb. Bags | 120 20 lb. Bags
Dimensions (W" x D" x H")1-6:
72 x 48 x 88
Additional Specifications
Model 120
Standard Model Numbers
Auto Defrost – R290:
TD120UAGP
Dimensions & Capacities
7 lb. Bags - Auto Defrost:
310
20 lb. Bags - Auto Defrost:
120
Approx. Interior Cubic Feet:
120
Dimensions (W”xD”xH”):
72 x 48 x 88
Door Size (W”x H”):
28 x 47
Operating Temperature
(X°F - X°F):
16-24
R404a Control
Mechanical
R290 Control
Electronic
Product Weight
Auto Defrost (lbs.):
820
Electrical
Voltage (V/Hz):
115/60
Min. Circuit Required (Amps):
20
Auto Defrost (Amps):
13
230V/50Hz Available: Upon Request
Other
Compressor (HP):
3/4
Refrigerant:
Certifications:
UL, cUL
DOE Compliant: Yes
CARB Compliant:
R290 Units
NSF Not Available
- Height Includes Compressor
- Add 3″ to Depth for Condensate Evaporator Pan
- Add 3.5″ to Depth for Glass Door & Handle
- Merchandiser storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.
Model 155
- AD
- R290
Interior Capacity7:
390 7 lb. Bags | 150 20 lb. Bags
390 7 lb. Bags | 150 20 lb. Bags
Dimensions (W" x D" x H")1-6:
96 x 48 x 88
Additional Specifications
Model 155
Standard Model Numbers
Auto Defrost – R290:
TD155UAGP
Dimensions & Capacities
7 lb. Bags - Auto Defrost:
390
20 lb. Bags - Auto Defrost:
150
Approx. Interior Cubic Feet:
155
Dimensions (W”xD”xH”):
96 x 48 x 88
Door Size (W”x H”):
28 x 47
Operating Temperature
(X°F - X°F):
16-24
R404a Control
Mechanical
R290 Control
Electronic
Product Weight
Auto Defrost (lbs.):
970
Electrical
Voltage (V/Hz):
115/60
Min. Circuit Required (Amps):
20
Auto Defrost (Amps):
13
230V/50Hz Available: Upon Request
Other
Compressor (HP):
3/4
Refrigerant:
Certifications:
UL, cUL
DOE Compliant: Yes
CARB Compliant:
R290 Units
NSF Not Available
- Height Includes Compressor
- Add 3″ to Depth for Condensate Evaporator Pan
- Add 3.5″ to Depth for Glass Door & Handle
- Merchandiser storage capacities are approximate & may vary due to type of ice, bag size, and methods of loading.
Keeping Things Cold Other Than Ice?
Try Our Lineup Of Refrigerated Reach-In Storage Freezers.
Specialty Merchandisers
These innovative merchandisers are effortless to fill and make it possible to load entire pallets of ice in just minutes. The engineering efficiencies eliminate the need to load thousands of pounds of ice by hand.
For more information on R290 Refrigerant
and state legislations, click here.
The self-checkout lane for ice. For remote locations, and services without 24/7 employees, Leer’s Ice Vending Machines offer the most affordable, reliable and simplest solution to Ice Merchandising needs.
For more information on R290 Refrigerant
and state legislations, click here.
Optimized for Ice between 16°F – 20°F, Leer’s Ice Transports utilize the same quality materials and construction as our Merchandisers, but are designed to fit your on-the-go needs be that on a trailer or in the bed of your truck.
For more information on our new 5×10 Ice Transport, click here.
Leer Indoor Ice Merchandisers Features
Click on a number to learn more about each product feature.
Leer Inc.
- Your Partner in Temperature-Controlled Storage Solutions
- With over 65 years of industry expertise, innovation and focus on manufacturing excellence, we're confident our products feature industry leading efficiency, reliability, durability and longevity - delivering an unbeatable value to you and your company.
- Made in Wisconsin, USA
- Manufactured under a strict quality control program to ensure our products are delivered right the first time, right every time.
- Iconic Red Snow-Capped ICE Decals
- The trademarked ICE decals are a staple of the Packaged Ice Industry and Leer’s unique signature that you can’t get anywhere else.
- We're With You Every Degree of the Way
- As an employee owned company, our success depends on your success. We stand behind our products and are dedicated to your success by providing free lifetime technical support. Our engineers and customer service teams are available to help, whether you're a potential new customer or a lifetime customer of Leer.
Construction Features
- Patented Construction Features
- All steel construction with no fasteners, welding, or adhesives. The offset seams are precision machine formed, resulting in water-tight lock-form seams that create a stronger and more durable merchandiser. This increases longevity by reducing moisture penetration into the insulation.
- High R-Values
- Increased insulation to reduce heat infiltration into the unit - resulting in consistent and optimal temperatures of 16°F - 24°F. There’s 2.5" of high-performance, eco-friendly, insulation in the ceiling and walls, and 3” of insulation in the floor.
- Rust Resistant
- The exterior of the merchandiser is finished with a two-part primer/top coat all-weather paint to provide superior resistance to humidity, corrosion, and other weather conditions.
Door Features
- High-Impact Breaker Strip
- High-impact breaker strip, located around the perimeter of the door jamb, durable enough to withstand excessive wear and tear and provide a thermal break between the merchandiser interior and exterior.
- Aluminum Door Frame
- The glass is encased in a long-lasting, durable, light-weight, aluminum frame.
- Insulated Tempered Glass
- The doors contain argon-filled insulated tempered glass. The argon insulation decreases the merchandisers' U-Value, which is essentially the amount of solar heat transfer the glass allows into the unit.
- Spring-Assisted Hinges
- The hinges are adjustable to ensure a lifetime of level, and solid sealing doors. Additionally, the springs help the door close securely and avoid accidentally being left open.
- Chrome-Finish Hardware
- All hardware, including hinges and handles, have a chrome-finish to provide greater, strength durability, resistance to corrosion, and aesthetics.
- Large Door Openings
- Oversized door openings for increased view and accessibility of the ice, and ease of merchandising during restock.
Refrigeration Features
- Serviceability
- On Automatic Defrost units, the drop-down evaporator allows for easier troubleshooting, maintenance, and servicing.
- Full Top and Compressor Cover
- Standard and provide air flow for better cooling of the condenser and compressor. It's also a layer of protection from harmful foreign objects.
- Intelligent Electronic Controls
- Electronic controls feature a digital display, factory preset advanced custom settings, and built-in intelligence to ensure your merchandiser will consistently operate at the optimal settings for your environmental needs.
Interior Features
- High-End Interior Finish
- Bright white interior finish.
- Interior Lighting
- Standard with energy efficient LED lighting to help showcase the ice.
Product Literature
Warranty Information
Certifications
What Owners Say:
“The summer heat is relentless in the desert and we need Merchandisers that we know will be reliable and keep our ice in premium condition. We have different sizes of Leer Merchandisers and have always been impressed with their quality and performance”.
Nolan D.
Ice Now
